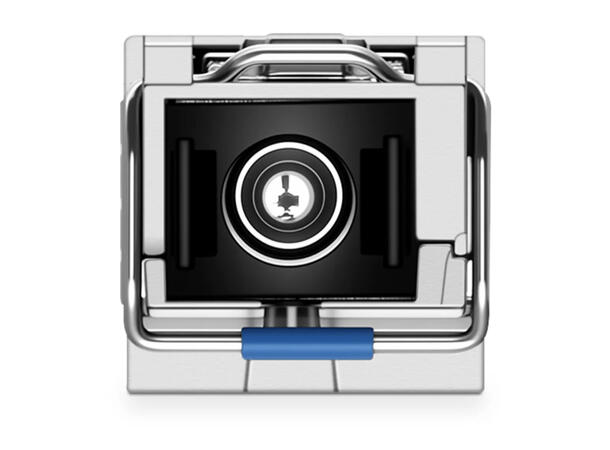

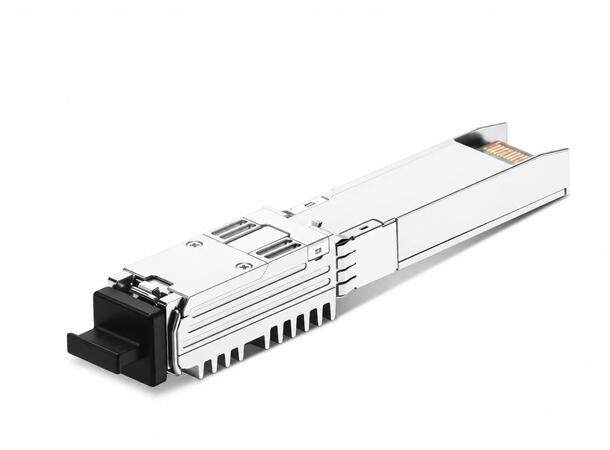

GLOBALfiber GPON ONU Stick SFP with Integrated MAC
1.25G TX / 2.5G RX | 1310nm TX / 1490nm RX | SC/UPC or SC/APC | 20km | DOM | I-Temp | B+
The GLOBALfiber GPON ONU Stick SFP integrates a complete GPON Optical Network Unit (ONU) including the PON MAC into a compact SFP transceiver. By combining the optical interface and ONU electronics into a single plug-and-play SFP module, it eliminates the need for an external ONT, simplifying FTTH, FTTB and enterprise fiber deployments while reducing equipment, power consumption and installation costs.
Designed for seamless integration with GPON access networks, the module automatically discovers and configures itself when connected to a compatible OLT, supporting full OMCI management and Digital Diagnostic Monitoring (DDM/DOM).
Key Features
• Integrated GPON ONU with built-in MAC
• Plug-and-play auto discovery and provisioning
• SFP MSA compliant form factor
• SC/UPC or SC/APC optical interface
• Single-fiber bidirectional transmission
• 1310nm DFB burst-mode transmitter
• 1490nm continuous-mode receiver
• GPON upstream: 1.244 Gb/s
• GPON downstream: 2.488 Gb/s
• EPON compatible (1.25G/1.25G)
• Supports HGU and SFU operation
• Digital Diagnostic Monitoring (DOM/DDM)
• Low power consumption
• Low EMI design
• Excellent ESD protection
• Hot-pluggable SFP module
• Single 3.3V power supply
• Industrial temperature version available
• Fully compliant with RoHS requirements
• Class 1 laser product (IEC 60825)
Technical Specifications
Optical Specifications
• Form Factor: SFP
• Connector: SC/UPC or SC/APC
• Fiber Type: Singlemode (SMF)
• Transmission Distance: Up to 20 km
• TX Wavelength: 1310 nm
• RX Wavelength: 1490 nm
• TX Laser: DFB Burst Mode
• RX Detector: TIA Continuous Mode
• Average TX Optical Power: +0.5 to +4 dBm
• Receiver Sensitivity: -28 dBm
• Receiver Saturation: -8 dBm
• Extinction Ratio: =10 dB
• Optical Return Loss Tolerance: -15 dB
Data Rates
GPON
• Upstream: 1.244 Gb/s
• Downstream: 2.488 Gb/s
EPON
• Upstream: 1.25 Gb/s
• Downstream: 1.25 Gb/s
Electrical Specifications
• Supply Voltage: 3.3 V
• Operating Voltage: 3.13–3.47 V
• Maximum Power Consumption: 2.5 W
• Maximum Supply Current: 300 mA
• AC coupled CML electrical interface
• Differential transmitter and receiver interface
• Digital diagnostic interface compliant with SFF-8472
Environmental Specifications
• Operating Temperature: -40°C to +85°C
Storage Temperature
• -40°C to +85°C
Humidity
• 5% to 95% RH
Digital Diagnostic Monitoring (DDM/DOM)
The integrated Digital Diagnostic Monitoring interface provides real-time monitoring of:
• Module temperature
• Supply voltage
• Laser bias current
• Transmit optical power
• Receive optical power
• TX Fault status
• RX Loss of Signal (LOS)
Standards Compliance
• ITU-T G.984.2
• ITU-T G.984.2 Amendment 1
• ITU-T G.988 (OMCI)
• IEEE 802.3ah
• SFP MSA (SFF-8074i)
• SFF-8472 Digital Diagnostics
• SGMII
• 1000BASE-X
• IEC 60825 Class 1 Laser
• RoHS Compliant
Applications
• FTTH (Fiber-to-the-Home)
• FTTB (Fiber-to-the-Building)
• GPON Access Networks
• EPON Networks
• Broadband Service Providers
• Enterprise Fiber Access
• Residential Gateways
• Ethernet Switches
• Routers
• Customer Premises Equipment (CPE)
