GLOBALfiber 1-Channel CWDM OADM Module
The 1CH CWDM Optical Add/Drop Multiplexer (OADM) module enables a single CWDM channel to be added or dropped from a fiber pair while passing all other channels. Ideal for use in metro and access networks, this passive device features low insertion loss, high isolation, and compact steel housing.

Product Overview

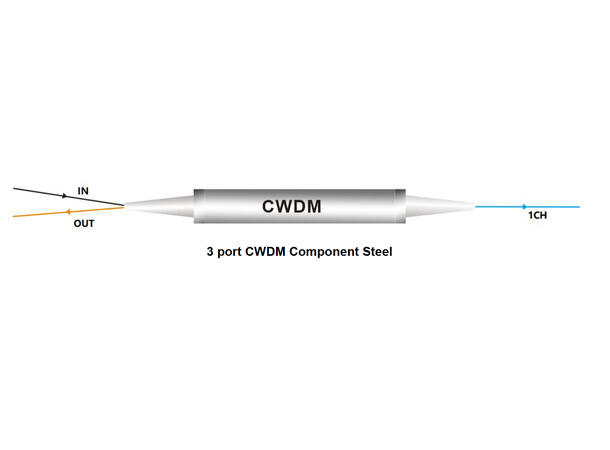

Form Factor: 3-Port CWDM OADM
Fiber Type: Singlemode (SMF-28e)
Wavelength Range: 1270nm to 1610nm (ITU Grid)
Technology: Thin Film Filter (TFF)

Key Features
• Low insertion loss (= 0.6 dB at passband)
• High channel isolation (= 30 dB adj., = 50 dB non-adj.)
• Low polarization dependent loss (= 0.1 dB)
• High directivity (= 50 dB) and return loss (= 45 dB)
• Compact steel housing for splice applications
• Wide operating temperature: -40°C to +85°C

Technical Specifications
• Channel Spacing: 20nm (ITU Grid)
• Wavelength Range: 1270nm to 1610nm
• Passband Width: = ±7.5nm
• Passband Ripple: = 0.3 dB
• Technology: TFF (Thin Film Filter)
• Reflection Band Ripple: = 0.2 dB
• IL @ Passband: =0.60dB
• IL @ Reflection: =0.40dB
• Reflection isolation: =15dB
• Polarization dependent loss: =0.1dB
• Polarization Mode Dispersion: = 0.2 ps
• Thermal Stability: =0.005N
• Directivity: =50dB
• Return loss: =45dB
• Power Handling: = 500 mW
• Optical Operating Temperature: –40°C to +85°C
• Storage Temperature: –40°C to +85°C
• Fiber type: SMF-28e

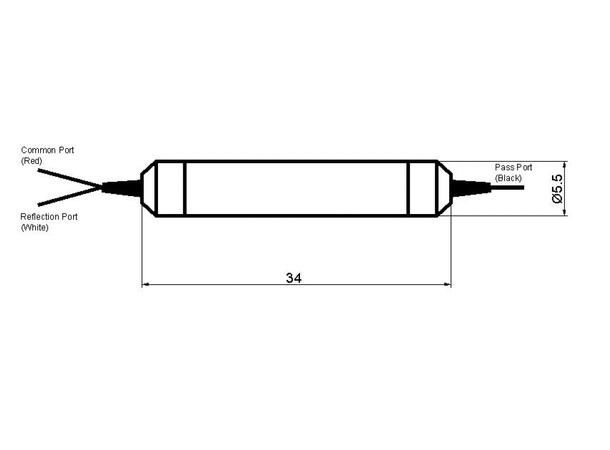

• Package Dimensions: 5.5mm × 34mm
