8-Channel DWDM MUX/DEMUX CH53–CH60 (C1530nm CWDM) – Dual Fiber, Expansion Port
The 8-Channel DWDM MUX/DEMUX (CH53–CH60) is a fully passive optical multiplexing solution designed for high-capacity C-band transmission over dual fiber. The unit combines eight DWDM wavelengths onto a single fiber pair, enabling scalable, cost-efficient transport without the need for additional active equipment.
Designed by GLOBALfiber, this DWDM MUX/DEMUX follows the ITU-T G.694.1 standard with 100 GHz channel spacing and is delivered in a compact LGX plug-in format for 1U rack systems.

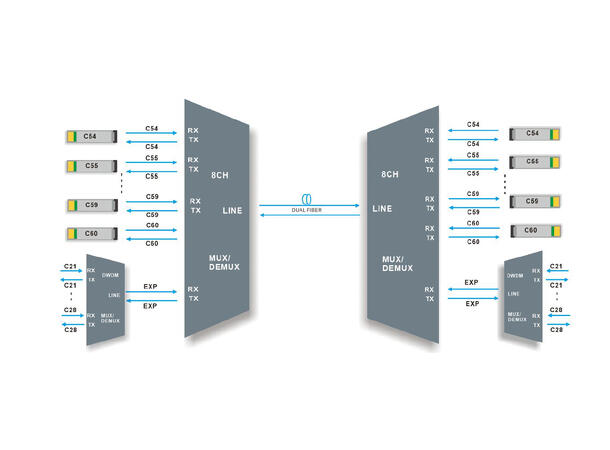

An integrated EXP (Expansion) port allows seamless future bandwidth growth by cascading additional DWDM MUX/DEMUX units on different wavelength ranges—without leasing or installing extra fibers.
Key Features
• 8-channel DWDM MUX/DEMUX, CH53 to CH60
• Dual-fiber transmission (separate Tx/Rx fibers)
• Passive design – no power required
• ITU-T G.694.1 compliant (100 GHz grid)
• Expansion (EXP) port for network scaling
• LGX plug-in module for 1U rack (4-slot)
• Designed for long-haul systems with EDFA and DCM
Wavelength & Optical Specifications
• DWDM channels:
o CH53–CH60 (1535.04 nm – 1529.55 nm)
o Custom wavelength ranges available
• Channel spacing:
o 100 GHz (˜ 0.8 nm)
• Channel passband:
o ± 0.11 nm
• Technology:
o TFF (Thin Film Filter)
Optical Performance
• Insertion loss (wavelength ports): = 2.4 dB
• Line port loss: = 3.2 dB
• Insertion loss @ 1310 nm port: = 0.8 dB
• Insertion loss @ 1% monitor port: = 26 dB
• Return loss: = 45 dB
• Directivity: = 45 dB
• Channel isolation:
o Adjacent channels: = 30 dB
o Non-adjacent channels: = 45 dB
• Polarization mode dispersion (PMD): = 0.1 ps
• Polarization dependent loss (PDL): = 0.3 dB
Mechanical & Environmental Specifications
• Connector type: LC/UPC
• Operating temperature: -40 °C to +85 °C
• Storage temperature: -40 °C to +85 °C

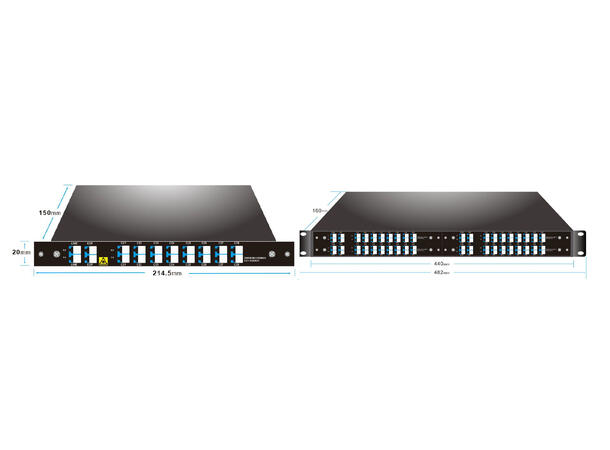

• Dimensions:
o LGX module: 190 × 150 × 20 mm
o 1U rack: 440 × 160 × 44 mm
• Net weight:
o LGX module: ~0.5 kg
o 1U 4-slot rack: ~1.5 kg
Form Factor & Installation
• LGX plug-in module
• Fits 4-slot 19” 1U rack

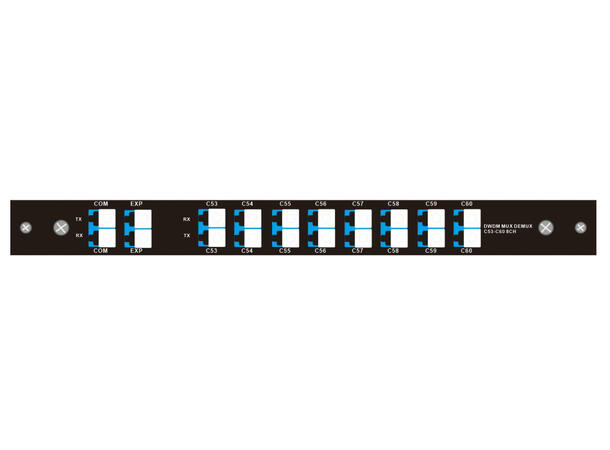

• Front-panel access for easy installation and maintenance
Typical Applications
• DWDM point-to-point fiber links
• Data centers and inter-data-center interconnect (DCI)
• Telecom and broadband backbone networks
• Broadcast & TV distribution
• Finance, government, cloud infrastructure

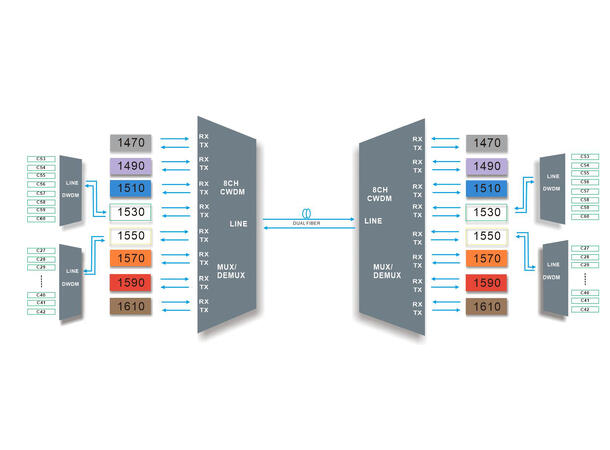

• Hybrid CWDM/DWDM network architectures
