8-Channel DWDM MUX/DEMUX CH21–CH28, (C1550nm CWDM) – Dual Fiber, Expansion Port
The 8-Channel DWDM MUX/DEMUX (CH21–CH28) is a fully passive optical multiplexing solution designed for scalable C-band transmission over dual fiber. It combines eight ITU-T DWDM wavelengths into a single fiber pair, maximizing capacity while keeping the network simple, stable, and future-proof.
Designed by GLOBALfiber, this module complies with the ITU-T G.694.1 standard using a 100 GHz grid. The compact LGX plug-in format allows installation in a standard 4-slot 19” 1U rack, making it ideal for central offices, data centers, and access aggregation sites.

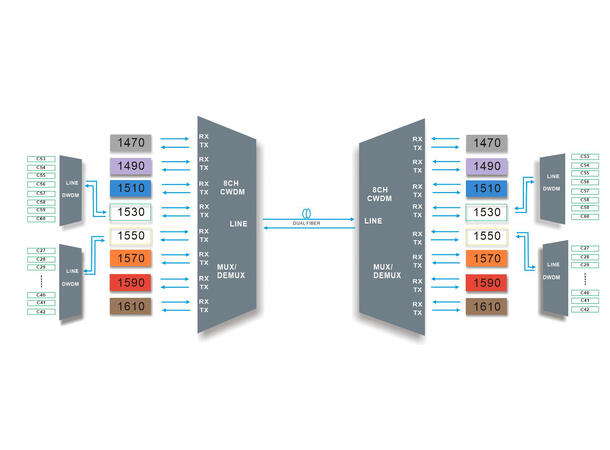

An integrated EXP (Expansion) port enables straightforward capacity growth by cascading additional DWDM MUX/DEMUX units with other wavelength ranges—without installing or leasing extra fiber.
Key Features
• 8-channel DWDM MUX/DEMUX, CH21 to CH28
• Dual-fiber transmission (separate Tx/Rx fibers)
• Fully passive design – no power required
• ITU-T G.694.1 compliant (100 GHz grid)
• Expansion (EXP) port for future bandwidth scaling
• LGX plug-in module for 1U rack (4-slot)
• Optimized for long-distance systems with EDFA and DCM
Wavelength & Optical Specifications
• DWDM channels:
o CH21–CH28
o Custom wavelength ranges available
• Channel spacing:
o 100 GHz (˜ 0.8 nm)
• Channel passband:
o ± 0.11 nm
• Technology:
o TFF (Thin Film Filter)
• Passband flatness:
o -0.5 dB @ = 45 GHz
o -3 dB @ = 85 GHz
Optical Performance
• Insertion loss (wavelength ports): = 2.4 dB
• Line port loss: = 3.2 dB
• Return loss: = 45 dB
• Directivity: = 45 dB
• Channel isolation:
o Adjacent channels: = 30 dB
o Non-adjacent channels: = 45 dB
• Polarization mode dispersion (PMD): = 0.1 ps
• Polarization dependent loss (PDL): = 0.3 dB
Mechanical & Environmental Specifications
• Connector type: LC/UPC
• Operating temperature: -40 °C to +85 °C
• Storage temperature: -40 °C to +85 °C

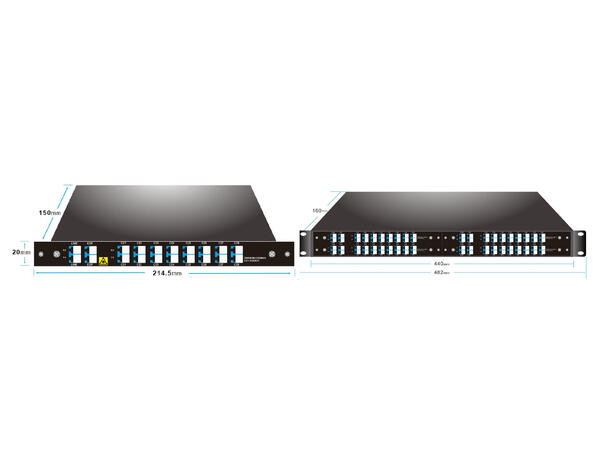

• Dimensions:
o LGX module: 214 × 150 × 20 mm
o 1U rack: 440 × 160 × 44 mm
• Net weight:
o LGX module: ~ 0.5 kg
o 1U rack (2-slot): ~ 2.5 kg

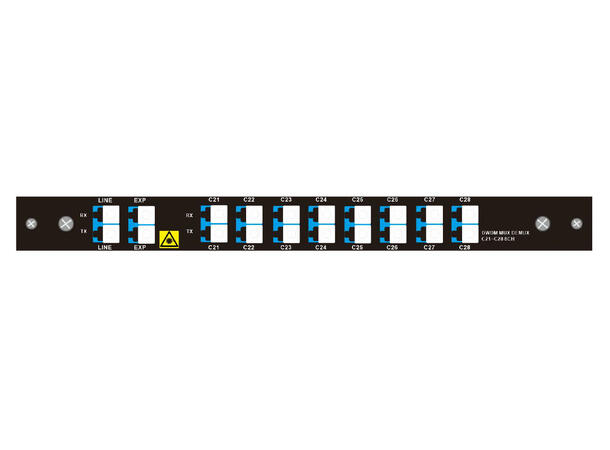

Form Factor & Installation
• LGX plug-in module
• Fits standard 19” 4-slot 1U rack
• Front-panel access for simple installation and maintenance
Typical Applications
• DWDM point-to-point fiber links
• Metro and backbone networks
• Data center interconnect (DCI)
• Broadcast & TV distribution
• Finance, government, and cloud infrastructure
• High-density enterprise and ISP transport networks
