4CH (8 Wavelengths) DWDM MUX/DEMUX C53–C60
Single Fiber Passive DWDM Multiplexer – LGX4 Module

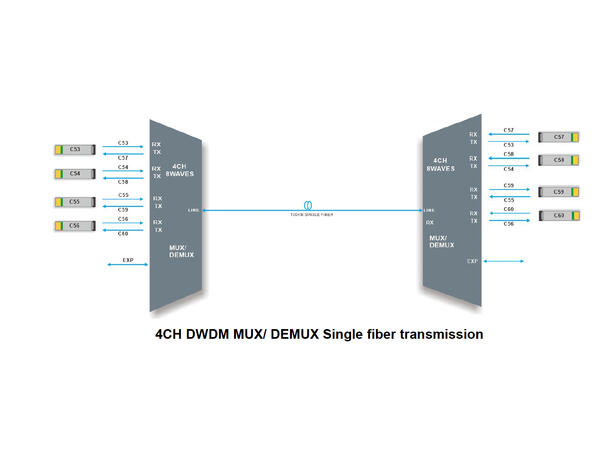

The 4CH (8 wavelengths) DWDM MUX/DEMUX is a passive optical multiplexing device designed for high-capacity fiber transmission systems. The unit operates within the DWDM C-band channels C53 to C60 and enables multiple optical signals to be transmitted simultaneously over a single fiber.
This DWDM solution uses 100 GHz channel spacing and allows up to 8 wavelengths to be combined and separated on a single fiber, enabling efficient utilization of fiber infrastructure without requiring active equipment.

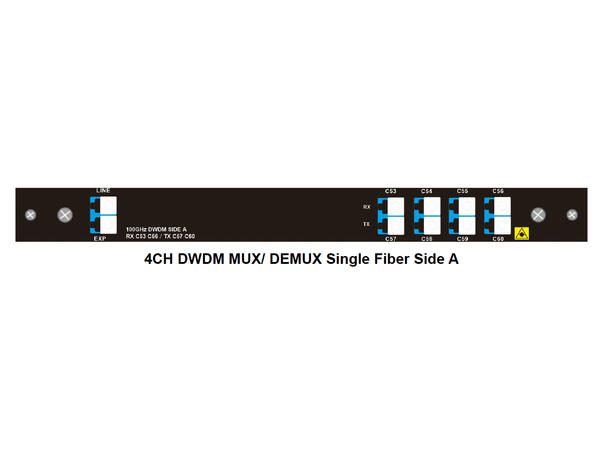

The device is delivered as an LGX4 plug-in module, making it suitable for deployment in LGX racks, DWDM transport systems, telecom networks and data center interconnects.
Key Features
• Passive DWDM MUX and DEMUX operation
• Supports 8 wavelengths across DWDM channels C53 – C60
• 100 GHz ITU-T channel grid
• High channel isolation and low insertion loss
• Enables high-capacity transmission over a single fiber
• No power required
• LGX4 plug-in module for 1U rack systems
• Designed for telecom, broadband and data center networks
Applications
• DWDM transport networks
• Metro and long-haul optical systems
• Data center interconnect (DCI)
• ISP and broadband infrastructure
• Enterprise optical backbone networks
• Fiber capacity expansion without additional fiber deployment
DWDM Channel Plan
Channel Frequency (THz) Wavelength (nm)
C53 192.1 ~1560.61
C54 192.2 ~1559.79
C55 192.3 ~1558.98
C56 192.4 ~1558.17
C57 192.5 ~1557.36
C58 192.6 ~1556.55
C59 192.7 ~1555.75
C60 192.8 ~1554.94
Optical Specifications
Channel Characteristics
• Channel Spacing: 100 GHz
• Channel Technology: AAWG DWDM filter
• Number of Channels: 4CH (8 wavelengths)
• Operating Band: DWDM C-band
Optical Performance
• Insertion Loss: = 3.5 dB
• Channel Isolation:
o Adjacent Channel: = 30 dB
o Non-Adjacent Channel: = 40 dB
• Return Loss: = 45 dB
• Directivity: = 50 dB
Polarization Characteristics
• Polarization Dependent Loss (PDL): = 0.5 dB
• Polarization Mode Dispersion (PMD): = 0.2 ps
Environmental Specifications
• Operating Temperature: -40 °C to +85 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5 – 95 % RH

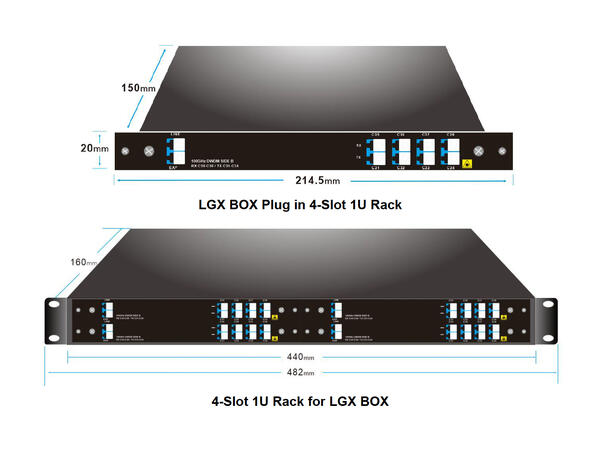

Mechanical Specifications
• Module Type: LGX4 plug-in module
• Fiber Type: Single Mode Fiber (SMF)
• Connector Type: LC / SC available
• Installation: LGX4 rack system
