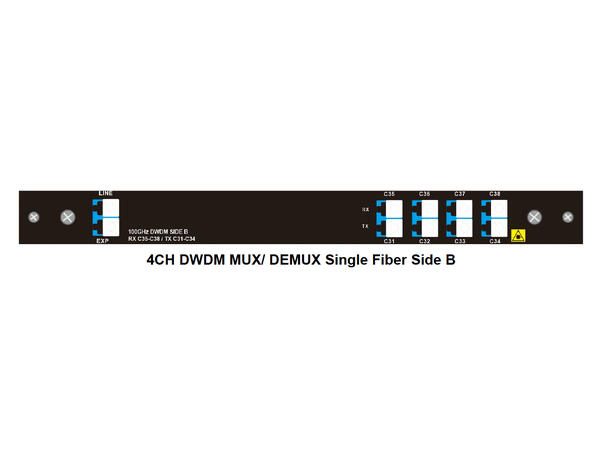

4CH (8 Wavelengths) DWDM MUX/DEMUX C31–C38
Single Fiber Passive DWDM Multiplexer – LGX4 Module
The 4CH (8 wavelengths) DWDM MUX/DEMUX is a passive optical multiplexing device designed for efficient wavelength division multiplexing in fiber optic networks. The unit operates on DWDM channels C31 to C38 within the C-band, enabling multiple optical signals to be transmitted simultaneously over a single fiber.

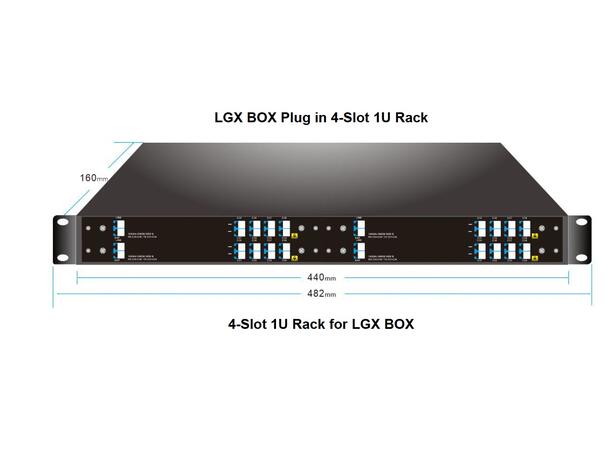

Using 100 GHz ITU-T channel spacing, the device combines and separates up to 8 DWDM wavelengths, allowing network operators to significantly increase fiber capacity without deploying additional fiber infrastructure. The device is delivered as an LGX4 plug-in module, making it suitable for installation in 1U rack enclosures, telecom cabinets and optical transport platforms.
Key Features
• Passive DWDM MUX / DEMUX operation
• Supports 8 wavelengths across channels C31 – C38
• 100 GHz ITU-T channel spacing
• Enables bidirectional transmission over a single fiber
• Low insertion loss and high channel isolation
• No power consumption
• LGX4 plug-in module compatible with standard rack systems
• Designed for telecom, broadband and data center optical networks
Applications
• Metro DWDM networks
• Long-haul optical transport systems
• ISP and broadband backbone networks
• Data center interconnect (DCI)
• Enterprise fiber backbone
• Fiber capacity expansion without additional fibers
DWDM Channel Plan (C31 – C38)
Channel Frequency (THz) Wavelength (nm)
C31 195.1 ~1536.61
C32 195.2 ~1535.82
C33 195.3 ~1535.04
C34 195.4 ~1534.25
C35 195.5 ~1533.47
C36 195.6 ~1532.68
C37 195.7 ~1531.90
C38 195.8 ~1531.12
Optical Specifications
Channel Characteristics
• Channel Spacing: 100 GHz
• Channel Technology: AAWG DWDM filter
• Number of Channels: 4CH (8 wavelengths)
• Operating Band: DWDM C-band
Optical Performance
• Insertion Loss: = 3.5 dB
• Channel Isolation:
o Adjacent Channel = 30 dB
o Non-Adjacent Channel = 40 dB
• Return Loss: = 45 dB
• Directivity: = 50 dB
Polarization Characteristics
• Polarization Dependent Loss (PDL): = 0.5 dB
• Polarization Mode Dispersion (PMD): = 0.2 ps
Environmental Specifications
• Operating Temperature: -40 °C to +85 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5 – 95 %
Mechanical Specifications
• Module Type: LGX plug-in module
• Fiber Type: Single Mode Fiber (SMF)
• Connector Type: LC / SC available
• Mounting: LGX4 rack enclosure
