4CH (8 Wavelengths) CWDM MUX/DEMUX 1471–1611nm with 1310nm Port
Single Fiber CWDM Multiplexer – 1U Rack System with 4 LGX Slots
The 4CH (8 wavelengths) CWDM MUX/DEMUX is a passive optical multiplexing system designed to combine multiple CWDM wavelengths onto a single optical fiber. The device supports CWDM channels from 1471 nm to 1611 nm, enabling efficient wavelength multiplexing for metro, access and enterprise fiber networks.
This solution allows up to 8 CWDM wavelengths to be transmitted over a single fiber, significantly increasing network capacity without requiring additional fiber infrastructure.

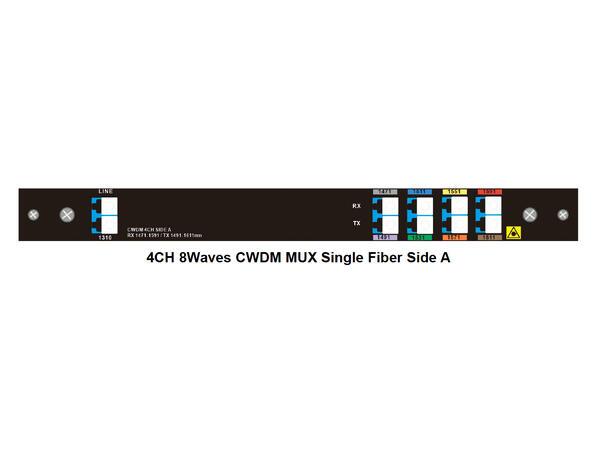

The system also includes a 1310 nm port, enabling integration of standard optical services alongside CWDM wavelengths. The device is delivered in a 1U rack chassis with four LGX4 slots, allowing flexible configuration and expansion.
Key Features
• Passive CWDM MUX / DEMUX system
• Supports 8 CWDM wavelengths (1471 – 1611 nm)
• Additional 1310 nm service port

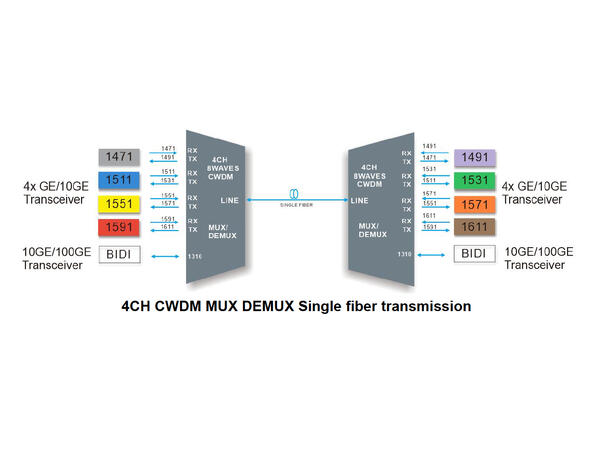

• Designed for single fiber bidirectional transmission
• Low insertion loss and high channel isolation
• Modular LGX4 plug-in architecture
• 1U rack chassis with 4 module slots
• No power consumption required
Applications
• Metro fiber networks
• ISP and broadband infrastructure
• Data center interconnect (DCI)
• Enterprise fiber backbone
• Mobile backhaul networks
• Fiber capacity expansion without installing new fibers
CWDM Channel Plan
Channel Wavelength
CH1 1471 nm
CH2 1491 nm
CH3 1511 nm
CH4 1531 nm
CH5 1551 nm
CH6 1571 nm
CH7 1591 nm
CH8 1611 nm
Additional service wavelength:
• 1310 nm port
Optical Specifications
Channel Characteristics
• Technology: Thin Film Filter (TFF)
• Channel Spacing: 20 nm (CWDM grid)
• Number of Channels: 4CH (8 wavelengths)
• Operating Wavelength Range: 1471 – 1611 nm
Optical Performance
• Insertion Loss: = 2.5 – 3.0 dB
• Channel Isolation:
o Adjacent Channel = 30 dB
o Non-Adjacent Channel = 40 dB
• Return Loss: = 45 dB
• Directivity: = 50 dB
Polarization Characteristics
• Polarization Dependent Loss (PDL): = 0.5 dB
• Polarization Mode Dispersion (PMD): = 0.2 ps
Environmental Specifications
• Operating Temperature: -40 °C to +85 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5 – 95 %
Mechanical Specifications
• System Type: 1U rack mount chassis
• Number of LGX Slots: 4
• Fiber Type: Single Mode Fiber (SMF)
• Connector Type: LC / SC available
• Installation: 19-inch rack system
