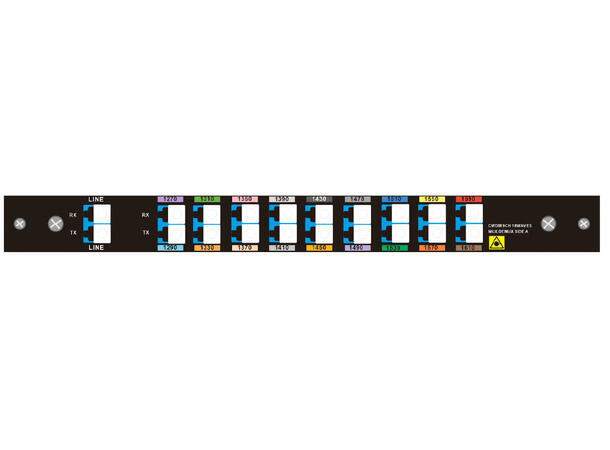

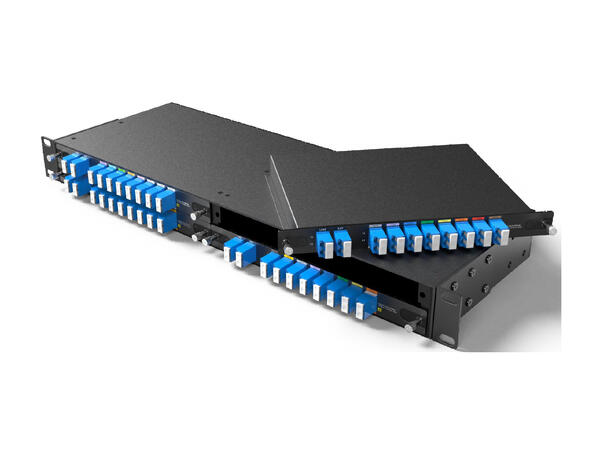

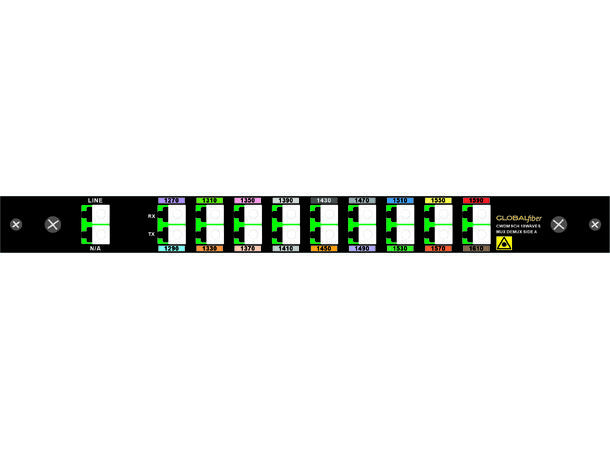

The GLOBALfiber GF-CM18-LGXLA-2761-A is a passive CWDM BiDi Mux/Demux that combines and separates optical wavelength channels. This LGX4 module version provides 9 bidirectional services / 18 wavelengths for single fiber, side a networks, making it suitable for wavelength-based expansion of existing fiber infrastructure. Its channel configuration is 1270-1610 nm; 20 nm spacing. Use it with the corresponding complementary unit at the opposite end of the link.
Select the unit by its channel plan, fiber arrangement and connector type. The multiplexer routes optical wavelengths; the connected transceivers and available optical budget determine the usable service rate and transmission distance.
Key specifications
| Specification |
Details |
| Product number |
GF-CM18-LGXLA-2761-A |
| Product type |
Passive CWDM BiDi Mux/Demux |
| Channel configuration |
9 bidirectional services / 18 wavelengths |
| Channel plan |
1270-1610 nm; 20 nm spacing |
| Fiber arrangement |
Single fiber, side A |
| Optical connectors |
LC/APC |
| Housing |
LGX4 module |
| Insertion loss |
≤3.0 dB; A+B link ≤3.8 dB |
| Operating temperature |
-40 to +85 °C |

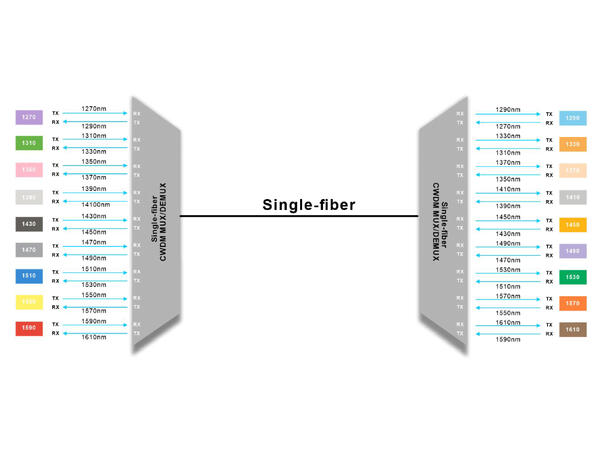

| Transmit wavelengths |
1290, 1330, 1370, 1410, 1450, 1490, 1530, 1570, 1610 nm |
| Receive wavelengths |
1270, 1310, 1350, 1390, 1430, 1470, 1510, 1550, 1590 nm |
Installation requirements
Install the matching A/B pair with complementary wavelength assignments. Verify connector polish, port mapping and the complete optical link budget before connecting the fiber.
