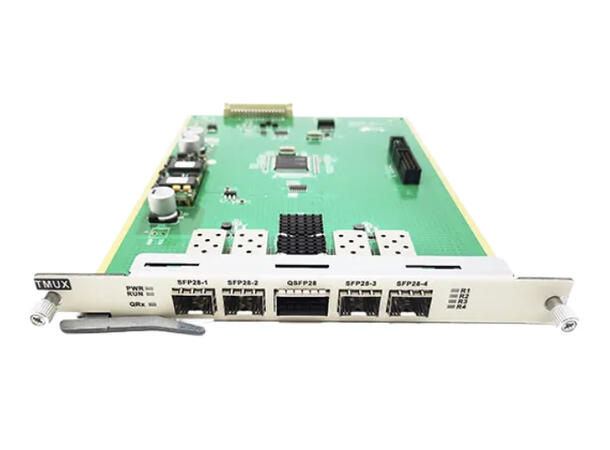

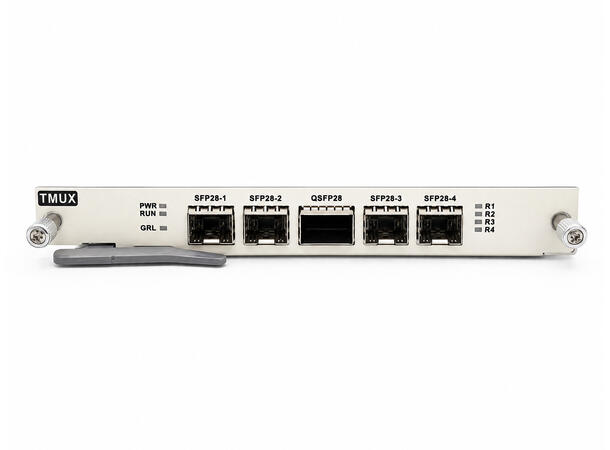

100G Muxponder / Transponder (TMUX8)
Product Overview
The 40G/100G Muxponder (TMUX8) is a versatile optical transponder designed for DWDM and CWDM networks, enabling seamless multiplexing and demultiplexing between 4×25G or 4×10G client signals and a single 100G or 40G line interface.
The module supports QSFP28-based client access and SFP28-based line interfaces, offering flexible deployment across metro networks, data centers, and enterprise optical backbones.
Compared with traditional coherent 100G solutions, this DWDM-based Muxponder delivers a significant cost reduction and provides a high-performance, energy-efficient alternative for metropolitan and data-center interconnect applications.
Applications
• Metro and regional DWDM transport
• Data center interconnection (DCI)
• Cloud and 5G aggregation networks
• Cost-effective 100 G metro access and expansion
• Enterprise backbone connectivity
Product Highlights
• Flexible rate conversion: Supports 4×25G ? 100G and 100G ? 4×25G bidirectional operation
• Client side: 1× 100G QSFP28 interface
• Line side: 4× SFP28 optical modules (4× 25G ports)
• Supports demultiplexing of a single 100G service into four 25G wavelength channels
• Supports port loopback testing for link verification and diagnostics
• Complies with C-band 50 GHz grid (ITU-T G.694.1) – supports up to 80 DWDM channels
• Implements 4×25G ? 100G multiplexing/demultiplexing over standard DWDM wavelengths
• Low power consumption and high reliability for continuous operation
Technical Specifications
System Parameters
• Center Wavelength: DWDM 1529.5 ~ 1565.50 nm (C-band)
• Data Rate: 100 Gbps (supports 40G variant)
• Client Interface: 1 × QSFP28 module (100G)
• Line Interface: 4 × SFP28 modules (4× 25G)
• Network Management: TELNET, SNMP, Web GUI
Mechanical Parameters
• Dimensions: 191 (W) × 253 (D) × 20 (H) mm
• Chassis Compatibility: GF-6000 CH04 / CH08 / CH20
Environmental Conditions
• Operating Temperature: -10 C ~ +60 C
• Storage Temperature: -40 C ~ +80 C
• Relative Humidity: 5 % ~ 95 %, non-condensing
Electrical Characteristics
• Power Consumption: = 30 W
