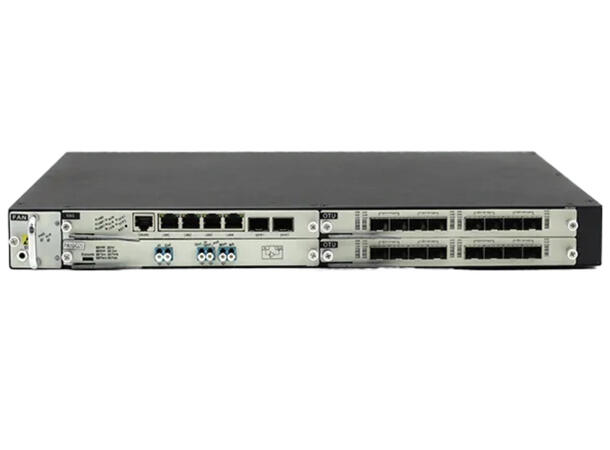

Product Overview
The 1U 4-Slot Transmission Platform is a compact, high-capacity optical transmission chassis designed for DWDM/OTN (Dense Wavelength Division Multiplexing / Optical Transport Network) applications in data-centers, metro networks, and core backbone networks.
It supports multiple service types transparently and is engineered for efficient up-scaling and mixed-rate transmission (10G/100G/200G/400G).
This chassis format supports hot-swappable service cards, dual power redundancy, and is optimized for rack-mount 19? installations.
Key Features
• Standard 1U 19" rack-mount chassis with four service slots

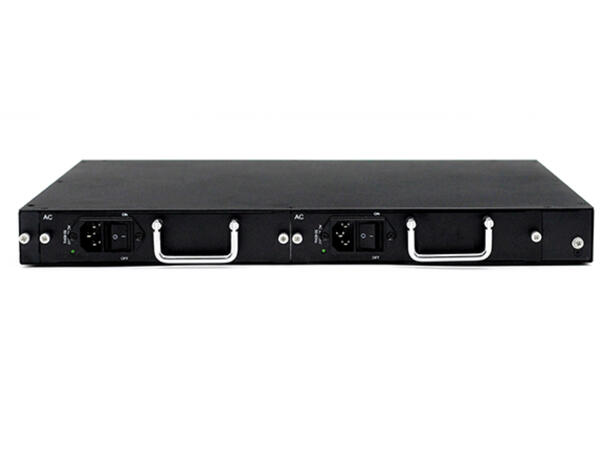

• Dual power supply (AC 220 V and/or DC –48 V) for redundancy
• Hybrid transmission: 10 G / 100 G / 200 G / 400 G interfaces supported
• Transparent access for Ethernet, Fibre Channel, SDH/SONET, CPRI
• Modular design with pluggable service cards (transponders, muxponders, amplifiers, OLP etc.)
• SNMP, Web and Telnet network management with remote monitoring and fault control
• Compact and energy-efficient for high-density deployments
Technical Specifications
• Chassis size (1U version): 482.5 mm (W) × 350 mm (D) × 44.5 mm (H) – 19" rack-mount
• Transmission capacity: Up to 96 × 10 Gbps or 96 × 100 Gbps (depending on card population)
• Service interfaces supported: 1G/10G Ethernet, 1/2/4/8/10 Gbps Fibre Channel, STM-1/4/16/64 (SDH/SONET), CPRI (1–7)
• MUX/DEMUX support: 8-channel, 16-channel, 40-channel or 48-channel DWDM modules
• Operating temperature: –10 C to +60 C
• Storage temperature: –40 C to +80 C
• Relative humidity: 5 % – 95 %, non-condensing
• Power consumption: < 120 W typical
• Power supply mode: Dual redundant (AC 220 V and/or DC –48 V optional)
