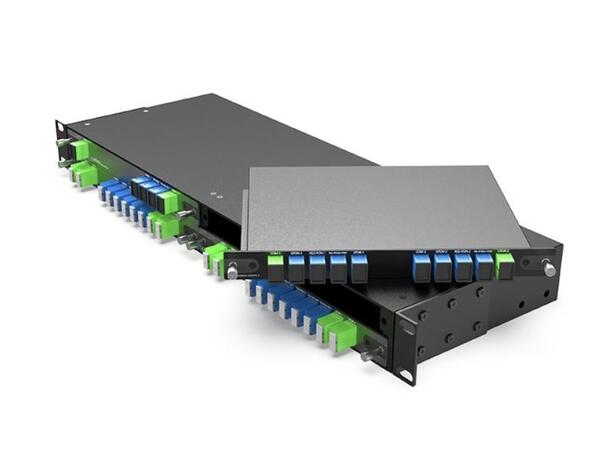

The GLOBALfiber GF-2G-LGX02-GXVO-1 is a passive 1 x 4CH CEx WDM coexistence multiplexer for GPON / XGS-PON / RF Video / OTDR. It combines and separates the supported wavelength bands on shared fiber infrastructure, helping operators add services without replacing the existing access fiber.
This LGX4 plug-in module version is intended for FTTH, FTTB and service-provider access networks. Select it by the required service groups and optical connector types; each service must use optics within its assigned passband.
Key specifications
| Specification |
Details |
| Product number |
GF-2G-LGX02-GXVO-1 |
| Configuration |
1 x 4CH CEx WDM |
| Services |
GPON / XGS-PON / RF Video / OTDR |
| Optical connectors |
PON: SC/UPC; RF Video and OTDR: SC/APC |
| Housing |
LGX4 plug-in module |
| Electrical power |
Passive; no electrical supply required |
| GPON passband / loss |
1290-1330 / 1480-1550 nm; COM-service insertion loss <0.9 dB |
| XGS-PON passband / loss |
1260-1280 / 1575-1580 nm; COM-service insertion loss <1.1 dB |
| RF Video passband / loss |
1540-1560 nm; COM-service insertion loss <1.3 dB |
| OTDR passband / loss |
1600-1675 nm; COM-service insertion loss <1.3 dB |
| Operating temperature |
-40 to +85 °C |
Installation requirements
Match each service to the corresponding optical passband and use the specified connector polish. Include the CEx insertion loss in the PON optical budget and verify the complete wavelength plan before deployment.
