4-Channel BiDi O-Band DWDM MUX/DEMUX, Single Fiber, Low O-Band, LGX – A/B Side
The GLOBALfiber 4-Channel BiDi O-Band DWDM MUX/DEMUX is a fully passive single-fiber bidirectional DWDM solution designed for efficient point-to-point transmission in the O-Band (low band).
The unit supports 4 DWDM channels per direction (8 wavelengths total), enabling simultaneous transmit and receive over a single optical fiber using matched A-Side and B-Side modules.
This compact LGX module is ideal for fiber-constrained environments and applications such as access aggregation, short-reach DWDM links, data centers, broadcast & TV, cloud infrastructure, finance, and government networks.
Key Features
• Single-fiber BiDi DWDM MUX/DEMUX
• 4 DWDM channels per direction (8 wavelengths total)
• Low O-Band wavelength plan
• Fully passive design – no power required
• Low insertion loss and high channel isolation

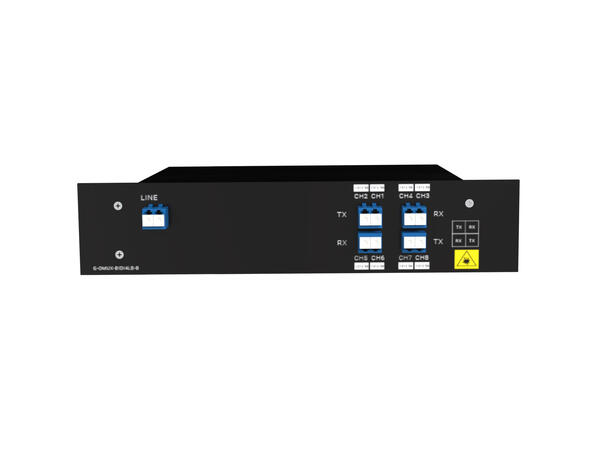

• Compact LGX module format
• A-Side / B-Side configuration for bidirectional links
• LC connectors
Wavelength Configuration
O-Band DWDM (Low Band)
• Operating wavelength range: 1260–1360 nm

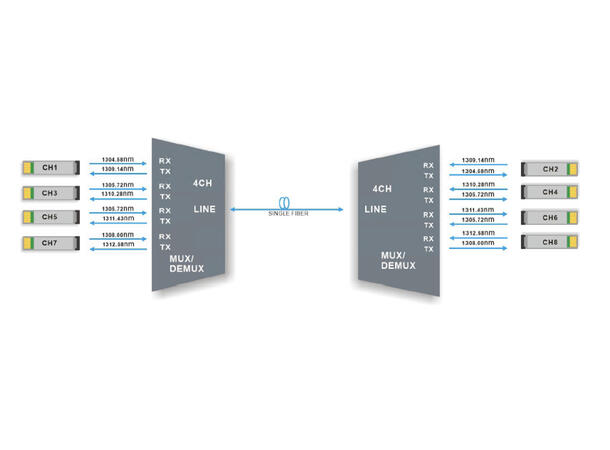

Supported wavelengths (paired A/B sides):
• 1304.58 nm / 1305.72 nm
• 1306.85 nm / 1308.00 nm
• 1309.14 nm / 1310.28 nm
• 1311.43 nm / 1312.58 nm
Optical Technology
• Filter technology: TFF (Thin Film Filter)
Technical Specifications
• Channel passband: ±0.11 nm
• Insertion loss: = 2.0 dB
• Link loss: = 0.5 dB
• Return loss: = 45 dB
• Directivity: = 45 dB
• Polarization mode dispersion (PMD): = 0.2 ps
• Polarization dependent loss (PDL): = 0.2 dB
Channel Isolation
• Adjacent channels: = 25 dB
• Non-adjacent channels: = 35 dB
Environmental & Mechanical Specifications
• Operating temperature: –10°C to +85°C
• Storage temperature: –40°C to +85°C
• Module format: LGX
• Dimensions (H × W × D): 220 × 200 × 39 mm
• Net weight: 0.5 kg
• Fiber type: Single fiber
• Connectors: LC
Typical Applications
• O-Band DWDM access and aggregation
• Single-fiber point-to-point links
• Fiber-limited metro and access networks
• Data centers and edge connectivity
• Broadcast, cloud, finance, and public infrastructure
