GLOBALfiber 8-Channel O-Band DWDM Mux/Demux (G-OMUX-8LB-LU)

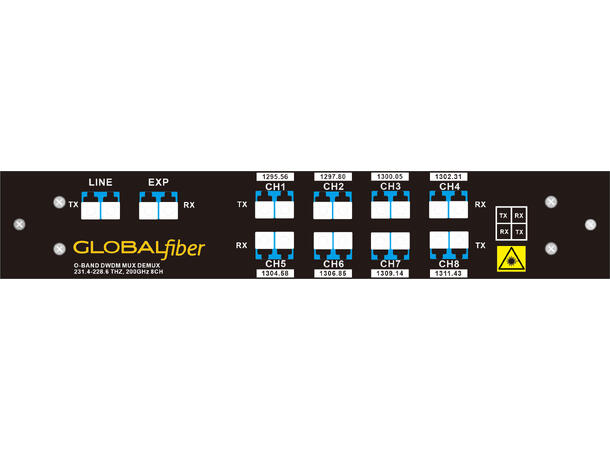

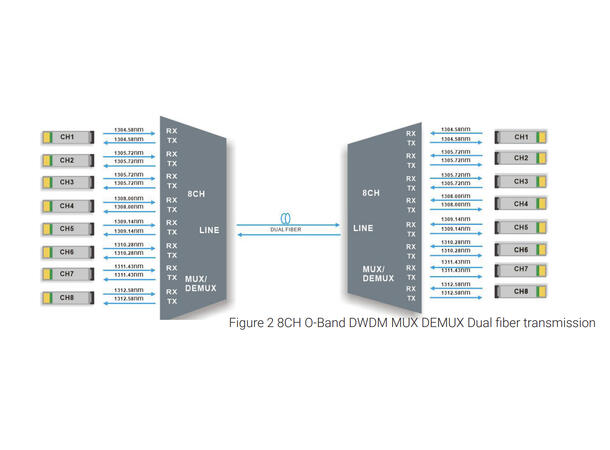

The GLOBALfiber 8-Channel O-Band DWDM Mux/Demux (Part No. G-OMUX-8LB-LU) is a high-performance passive optical module designed for O-Band transmission (228.4–229.8 THz / ~1304–1312 nm) using a 200 GHz ITU grid. This LGX-style plug-in unit enables eight independent DWDM wavelengths over a singlemode fiber pair, offering ultra-low insertion loss, high channel isolation and excellent long-term stability.
Optimized for data centers, enterprise networks, cloud service providers, broadcast distribution and government infrastructure, the module uses advanced Thin Film Filter (TFF) technology and SMF-28e fiber to ensure consistent optical performance across a wide temperature range. Its robust steel housing allows for reliable deployment in splice closures, equipment racks and compact optical nodes.
Key Features
• Supports 8 O-Band DWDM channels (1304.58–1312.58 nm, 200 GHz spacing)
• Operating wavelength range: 1260–1360 nm
• Ultra-low insertion loss: =2.0 dB (wavelength ports)
• Extremely low link loss: =0.5 dB
• High return loss and directivity: =45 dB
• Low polarization dependent loss (PDL =0.2 dB)
• Low polarization mode dispersion (PMD =0.2 ps)
• Strong channel isolation: Adjacent =25 dB, Non-adjacent =35 dB
• Wide operating temperature: –10°C to +85°C
• Compact LGX form factor (220 × 200 × 39 mm)
• Passive design – no power required
Technical Specifications
• Channel Spacing: 200 GHz (O-Band ITU grid)
• Wavelengths:
o 1304.58 nm
o 1305.72 nm
o 1306.85 nm
o 1308.00 nm
o 1309.14 nm
o 1310.28 nm
o 1311.43 nm
o 1312.58 nm
• Operating Wavelength Range: 1260–1360 nm
• Passband Width: ±0.11 nm
• Insertion Loss (channels): =2.0 dB
• Link Loss: =0.5 dB
• Return Loss: =45 dB
• Directivity: =45 dB
• PDL: =0.2 dB
• PMD: =0.2 ps
• Channel Isolation: Adjacent =25 dB, Non-adjacent =35 dB
• Operating Temperature: –10°C to +85°C
• Storage Temperature: –40°C to +85°C
• Dimensions: 220 × 200 × 39 mm
• Weight: ~0.5 kg
Applications
• O-Band DWDM for data-center interconnects
• High-density wavelength multiplexing over limited fiber
• Metro and long-haul O-Band optical transport
• Passive add/drop architectures in enterprise and cloud networks
• Cost-efficient bandwidth expansion without active components
