4-Channel O-Band DWDM MUX/DEMUX, Dual Fiber, 200 GHz Spacing, LGX

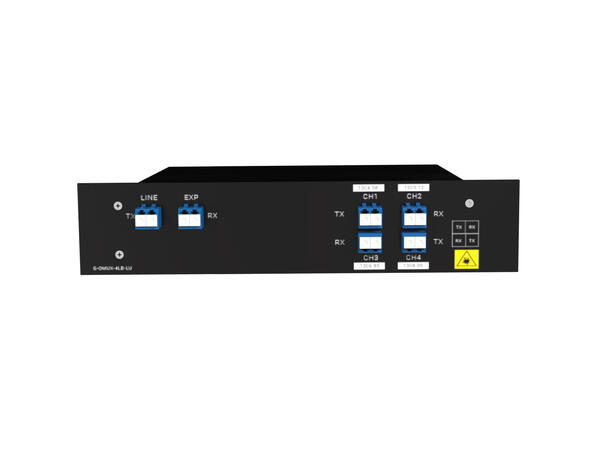

The GLOBALfiber G-OMUX-4LB-LU is a fully passive O-Band DWDM MUX/DEMUX designed for dual-fiber point-to-point transmission.
It supports 4 DWDM channels with low insertion loss, enabling reliable aggregation of O-Band services where compact form factor and spectral efficiency are required.
With 200 GHz channel spacing in the low O-Band, this solution is well suited for access aggregation, short-reach DWDM links, and environments that benefit from O-Band characteristics such as low chromatic dispersion.
Key Features

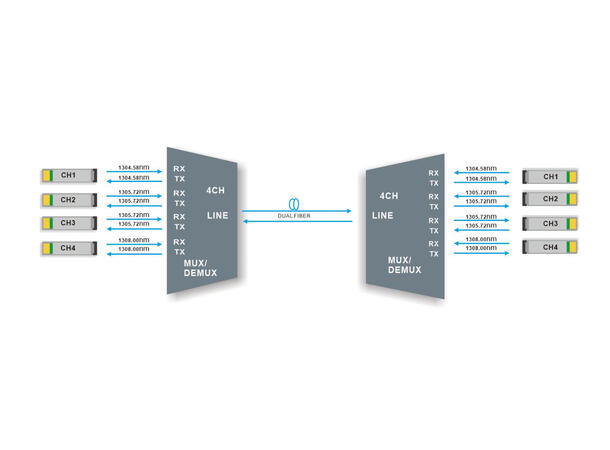

• Dual-fiber DWDM MUX/DEMUX (separate Tx/Rx fibers)
• 4 O-Band DWDM channels
• 200 GHz channel spacing
• Fully passive design – no power required
• Low insertion loss on wavelength ports
• Compact LGX module format
• LC connectors
• Ideal for point-to-point links and aggregation
Wavelength Configuration
• Frequency range: 228.4–229.0 THz
• Operating wavelength range: 1260–1360 nm
• Working wavelengths:
o 1304.58 nm
o 1305.72 nm
o 1306.85 nm
o 1308.00 nm
Optical Technology
• Filter technology: TFF (Thin Film Filter)
Technical Specifications
• Channel passband: ±0.11 nm
• Insertion loss (wavelength ports): = 2.0 dB
• Link loss: = 0.5 dB
• Return loss: = 45 dB
• Directivity: = 45 dB
• Polarization mode dispersion (PMD): = 0.2 ps
• Polarization dependent loss (PDL): = 0.2 dB
Channel Isolation
• Adjacent channels: = 25 dB
• Non-adjacent channels: = 35 dB
Environmental & Mechanical Specifications
• Operating temperature: –10 °C to +85 °C
• Storage temperature: –40 °C to +85 °C
• Module format: LGX
• Dimensions (H × W × D): 220 × 200 × 39 mm
• Net weight: 0.5 kg
• Connectors: LC
Typical Applications
• O-Band DWDM access and aggregation
• Short-reach DWDM point-to-point links
• Data center edge connectivity
• Broadcast, cloud, finance, and public infrastructure
