OVERVIEW
The GLOBALfiber 16-channel DWDM Mux/Demux is a passive optical multiplexing device designed for high-density wavelength transmission in the C-band. It supports ITU-T G.694.1 100GHz spacing and channels C21 to C36 (1560.61 nm to 1548.51 nm), enabling increased fiber capacity without deploying additional fiber infrastructure.

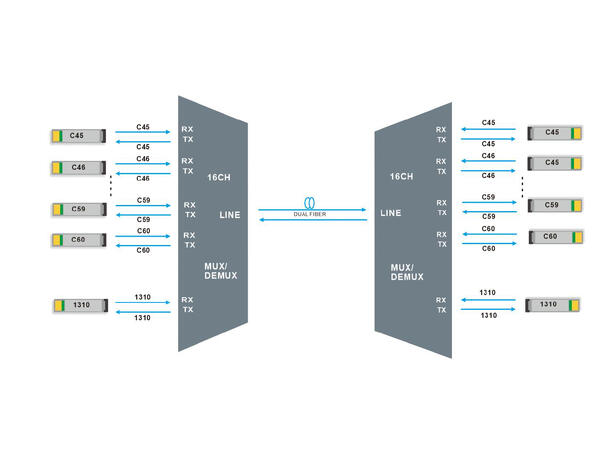

The integrated 1310 nm legacy port allows traditional optical services (1G/10G/40G/100G) to coexist with DWDM channels. The expansion port provides a simple upgrade path for additional wavelength capacity, while the monitor port enables non-intrusive optical power monitoring and troubleshooting.
APPLICATIONS
• Metro and long-haul telecom networks
• Data center interconnect (DCI)
• Enterprise and private fiber networks
• Government, finance, healthcare & cloud networks
• High-capacity point-to-point fiber transport
• DWDM backbone and regional aggregation links
TECHNICAL SPECIFICATIONS
Wavelength & Channel Parameters
• Wavelength Channels: C21 – C36
• Wavelength Range: 1560.61 nm – 1548.51 nm
• Channel Spacing: 100 GHz (0.8 nm)
• Channel Passband Width: ±0.11 nm
• Center Wavelength Accuracy: ±0.05 nm
• Optical Filter Technology: TFF (Thin Film Filter)
Optical Performance
• Insertion Loss per DWDM Channel: = 3.5 dB
• Total Link Loss (Typical Path): = 4.5 dB
• 1310 nm Port Insertion Loss: = 0.8 dB
• Monitor Port (1% Tap) Insertion Loss: = 26 dB
• Return Loss (All Ports): = 45 dB
• Directivity: = 45 dB
• Polarization Mode Dispersion (PMD): = 0.1 ps
• Polarization Dependent Loss (PDL): = 0.3 dB
Channel Isolation
• Adjacent Channel Isolation: = 30 dB
• Non-Adjacent Channel Isolation: = 45 dB
Environmental Conditions
• Operating Temperature Range: -10°C to +70°C
• Storage Temperature Range: -40°C to +85°C
Mechanical Properties
• Form Factor: 19” Rack Mount, 1RU
• Dimensions (H × W × D): 44 × 440 × 230 mm
• Weight: 3.5 kg
• Connector Type: LC/UPC (other connector options available upon request)
Port Configuration
• 1 × Line Port (DWDM Line Side)
• 16 × DWDM Wavelength Ports (C21 – C36)
• 1 × 1310 nm Legacy Service Port
• 1 × Monitor Port (1% Optical Tap Output)
• 1 × Expansion Port for Future Channel Growth
KEY ADVANTAGES
• Fully passive – no power supply required
• Low-loss design suitable for long-distance transmission
• Seamless capacity expansion via expansion port
• Non-intrusive troubleshooting via 1% monitor port
• Compatible with all standard ITU-T DWDM transceivers
• Suitable for existing or new fiber deployments
