8-Channel 800G DWDM MUX/DEMUX (150GHz )with Monitor and Expansion Port
The GLOBALfiber 150GHz 8-channel DWDM MUX/DEMUX is a passive optical multiplexing solution designed for high-capacity fiber networks. The units operates across the C-band wavelength range (1566.314 nm – 1529,16 nm) and follows the ITU-T 150 GHz DWDM grid, enabling efficient use of existing fiber infrastructure.
Using thin film filter (TFF) technology, the device provides stable wavelength performance, low insertion loss, and strong channel isolation. This makes it ideal for DWDM transport systems supporting up to 8 wavelengths, with capacity scaling for high-speed services such as 100G, 200G, 400G and 800G optical links.
The integrated monitor port allows real-time optical power monitoring and troubleshooting without interrupting live traffic. An EXP (expansion) port enables simple network scaling by connecting additional DWDM multiplexers.
This passive device requires no power supply, making it highly reliable for telecom networks, metro transport, broadband infrastructure, and data center interconnect (DCI) deployments.
Key Features
• Passive 8-channel DWDM multiplexer and demultiplexer
• Operates on ITU-T 150 GHz grid
• Wavelength range 1566.314 nm – 1529,16 nm
• Integrated monitor port for optical power monitoring
• Expansion port for cascading additional DWDM channels
• Low insertion loss for high-capacity optical transport
• High channel isolation for stable DWDM performance
• Supports high-speed transmission including 100G / 200G / 400G / 800G
• Passive design – no power consumption

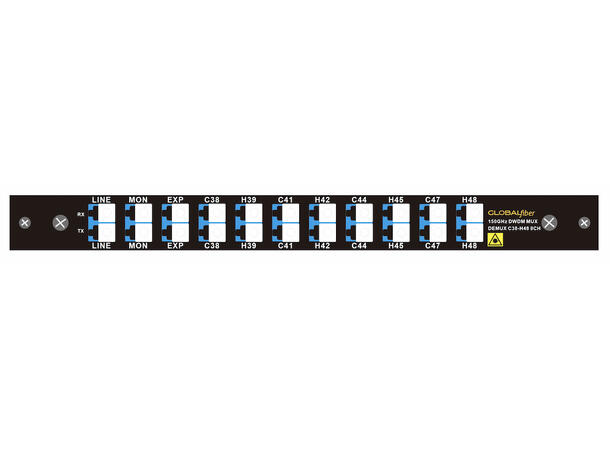

• Available in LGX4 module
Technical Specifications
Optical Characteristics
• Wavelength Range: 1566.314 nm – 1529.16 nm
• Channel Spacing: 150 GHz
• Technology: Thin Film Filter (TFF)
• Center Wavelength Accuracy: ±0.05 nm
Loss Parameters
• Insertion Loss: = 2.4 dB
• Link Loss: = 3.5 dB
• Return Loss: = 40 dB
• Directivity: = 40 dB
Spectral Performance
• Channel Passband: ±0.5 nm
• –0.5 dB Bandwidth: = 90 GHz
• –3 dB Bandwidth: = 150 GHz
Polarization Characteristics
• Polarization Mode Dispersion (PMD): = 1.0 ps
• Polarization Dependent Loss (PDL): = 0.7 dB
Channel Isolation
• Adjacent Channel Isolation: = 30 dB
• Non-Adjacent Channel Isolation: = 45 dB
Environmental Specifications
• Operating Temperature: –40°C to +85°C
• Storage Temperature: –40°C to +85°C
Mechanical Specifications
• Module Type: LGX4 Module
• Dimensions: 214.5 × 150 × 20 mm
• Weight: 0.5 kg
