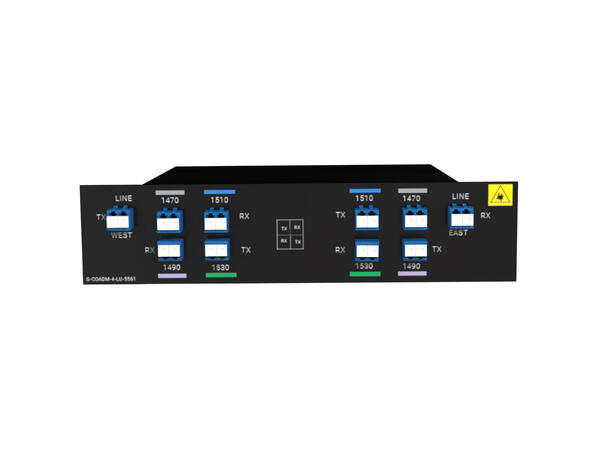

The GLOBALfiber G-COADM-4-LU-5561 is a passive CWDM OADM that adds and drops selected wavelengths on east and west optical paths. This LGX module for 2-slot 1U rack version provides 4 add/drop channels per direction for dual fiber, west and east networks, making it suitable for wavelength-based expansion of existing fiber infrastructure. Its channel configuration is C55 / C57 / C59 / C61; 20 nm spacing.

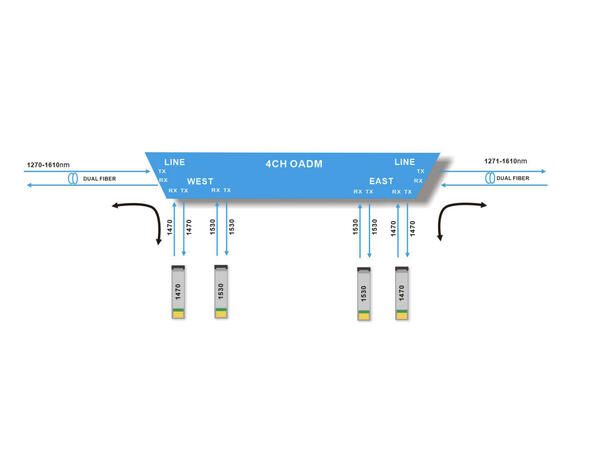

The add/drop ports provide access to the selected wavelengths while the line ports carry the through path. Match the channel selection to the transceivers and include the loss of every add/drop and through section when planning the optical link.
Key specifications
| Specification |
Details |
| Product number |
G-COADM-4-LU-5561 |
| Product type |
Passive CWDM OADM |
| Channel configuration |
4 add/drop channels per direction |
| Channel plan |
C55 / C57 / C59 / C61; 20 nm spacing |
| Fiber arrangement |
Dual fiber, west and east |
| Optical connectors |
LC |
| Housing |
LGX module for 2-slot 1U rack |
| Insertion loss |
Channel to west/east ≤1.5 dB; west-east ≤2.4 dB |
| Operating temperature |
-40 to +85 °C |
Installation requirements
Match each add/drop wavelength to the connected transceiver and follow the east/west port labels. Confirm connector polish and the remaining link budget before installation.
