GLOBALfiber 2-Channel CWDM OADM – Dual Fiber, East/West, DIN Mount
The GLOBALfiber 2-Channel CWDM OADM is a passive, high-performance optical add/drop multiplexer designed to maximize fiber utilization in networks where fiber resources are limited. The unit enables simultaneous add and drop of two CWDM wavelengths in both east and west directions over dual fiber, without power, software, or active electronics.
Housed in a compact and robust DIN-mount enclosure, this OADM is ideal for central offices, street cabinets, industrial installations, and technical racks.
Built on proven CWDM fundamentals, the solution delivers long-term stability while meeting modern capacity and scalability requirements across telecom, data center, and enterprise networks.
Function and Operation
The 2-channel CWDM OADM allows:
• Add and drop of two independent CWDM wavelengths
• Bidirectional operation (east / west) on dual fiber
• Transparent pass-through of remaining CWDM channels
The device uses Thin Film Filter (TFF) technology to achieve precise wavelength separation, low insertion loss, and high channel isolation. As a fully passive component, it ensures predictable behavior, zero maintenance, and high operational reliability.
Typical Applications
This CWDM OADM is commonly deployed in:
• Access and regional networks with limited fiber availability
• Broadcast and TV contribution/distribution networks
• Data centers and inter-data-center links (IDC)
• Financial and government networks
• Industrial and mission-critical environments
It is especially suitable when new services must be introduced without disrupting existing traffic.
Key Technical Specifications
• Number of channels: 2 CWDM channels
• Wavelengths (example): 1470 / 1490 nm (other channel pairs available)
• Channel spacing: 20 nm
• Technology: Thin Film Filter (TFF)
• Insertion loss:
o Channel ? East or West: = 1.2 dB
o East ? West: = 1.8 dB
• Return loss: = 45 dB
• Channel isolation:
o Adjacent: = 30 dB
o Non-adjacent: = 45 dB
• Polarization dependent loss (PDL): = 0.3 dB
• Polarization mode dispersion (PMD): = 0.1 ps
• Operating temperature: -40 °C to +85 °C
• Connectors: LC/UPC

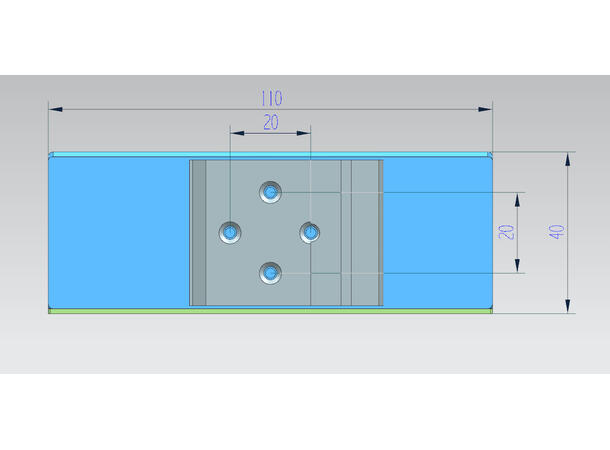

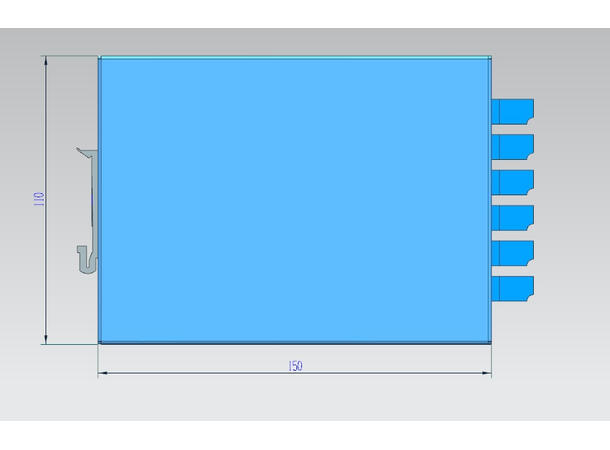

• Enclosure: DIN-mount box, 50 × 110 × 40 mm

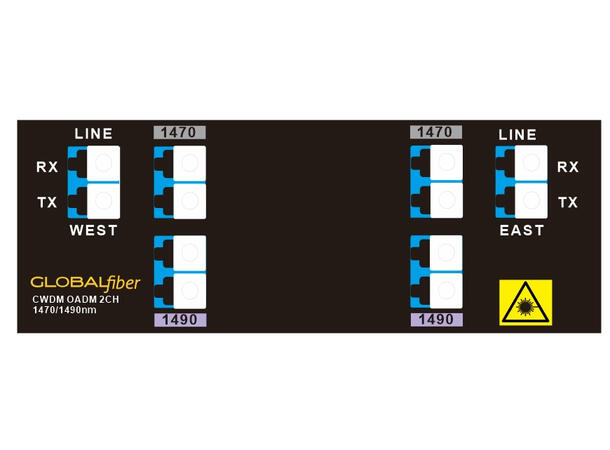

All versions are supplied as east/west configurations, with LC connectors and DIN-mount housing.
