GLOBALfiber 8-Channel Dual Fiber CWDM MUX/DEMUX
(1470–1610nm with 1310nm and Monitor port)
This 8-channel CWDM MUX/DEMUX is a passive wavelength division multiplexing solution designed for dual-fiber transmission in point-to-point networks. It supports wavelengths from 1470nm to 1610nm with 20nm channel spacing and includes a dedicated 1310nm port for legacy services as well as a monitor port.
The unit is delivered as a plug-in LGX module and can be installed in a 4-slot 1U 19-inch rack chassis. It is ideal for environments where fiber resources are limited and bandwidth expansion is required without deploying additional fibers.
Typical applications include broadcast and television, data centers (IDC), finance, government networks, cloud infrastructure, and large-scale data transport.
Key Features
• Passive CWDM technology (no power required)
• 8 CWDM channels: 1470nm to 1610nm
• Channel spacing: 20nm

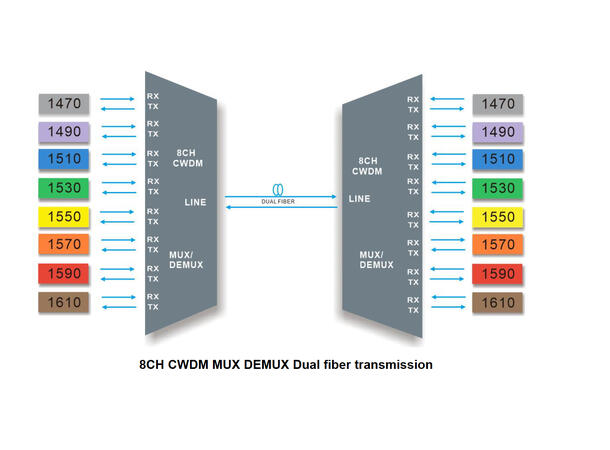

• Dual-fiber transmission
• Dedicated 1310nm port for legacy traffic
• Monitor port
• Plug-in LGX module design
• Compatible with 4-slot 1U rack chassis
• Enables network expansion without additional fiber deployment
1310nm Port Compatibility
The 1310nm port supports:
• 1G LX/SX
• 10G LR
• 40G ER4 / LR4
• 100G LR / ER4 / LR4 / ZR4
This port allows integration of existing legacy services alongside CWDM channels.
Optical Specifications
CWDM Channels
• Wavelength range: 1470nm – 1610nm (8 channels)
• Channel spacing: 20nm
• Channel passband: ±6.5nm
• Technology: TFF (Thin Film Filter)
Optical Performance
• Insertion loss (regular channel): = 2.4dB
• Total link loss: = 3.5dB
• Insertion loss @ 1310nm: = 0.8dB
• Return loss: = 45dB
• Directivity: = 45dB
• Polarization Mode Dispersion (PMD): = 0.1ps
• Polarization Dependent Loss (PDL): = 0.3dB
• Channel isolation:
o Adjacent: = 30dB
o Non-adjacent: = 45dB
1310nm Port
• Wavelength range: 1260nm – 1360nm
• Insertion loss: = 0.8dB
Environmental Specifications
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
Mechanical Specifications

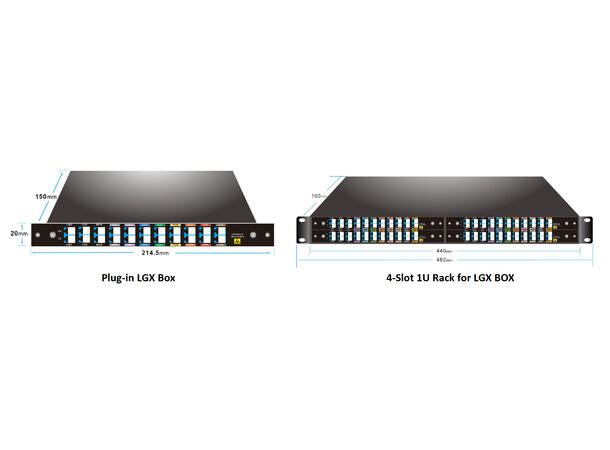

LGX Module
• Dimensions (H × W × D): 214.5 × 150 × 20 mm
• Net weight: 0.5 kg
4-Slot 1U Rack
• Dimensions (H × W × D): 44 × 440 × 160 mm
• Net weight: 1.5 kg
• 19-inch standard rack mount
• Supports up to 4 plug-in LGX modules
Connectors: LC/UPC (specified configuration)
