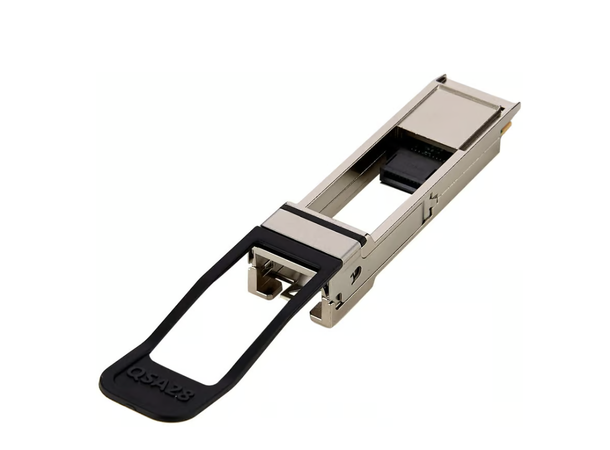

40G QSFP+ to 10G SFP+ Adapter Converter Module
The QSFP+ to SFP+ adapter converter module enables seamless 10G Ethernet connectivity by allowing a standard 10G SFP+ transceiver to operate in a 40G QSFP+ port. It is an ideal solution for network migration, port reuse, and flexible deployment where 10G optics are required on QSFP+-based platforms.
The adapter is fully compliant with QSFP+ and SFP+ MSA standards and features an integrated MCU that enables proper I²C communication between the host system and the inserted SFP+ transceiver.
Only lane 1 of the QSFP+ electrical interface is active; the remaining three lanes are not connected.
Key Features
• Enables 10G SFP+ transceivers in 40G QSFP+ ports
• Cisco-compatible coding
• Integrated MCU for I²C register translation
• Supports DDM/DOM monitoring
• Hot-pluggable adapter module
• Compact and power-efficient design
Important Note
The QSFP-SFP10G-CVR adapter requires switch support for QSFP port breakout functionality in order to operate correctly.
Please verify platform compatibility prior to deployment.
Technical Specifications
• Form Factor: QSFP+ to SFP+ Adapter
• Maximum Data Rate: 10 Gbps
• SFP+ Lane Mapping: QSFP+ Lane 1 only
• Connector: SFP+ receptacle
• Maximum Power Consumption: 1.5 W (without SFP+ module installed)
• DDM / DOM: Supported
• Bit Error Rate (BER): = 1 × 10?¹²
• Operating Temperature (Commercial): –20 °C to +85 °C (–4 °F to +185 °F)
Supported Standards & Protocols
• QSFP+ MSA: SFF-8436
• SFP+ MSA: SFF-8431
Typical Applications
• QSFP+ to SFP+ port conversion
• 10G Ethernet deployment on 40G switches
• Gradual migration from 10G to 40G infrastructure
• Data center and enterprise networking
Warranty
• 5-Year Warranty
