Product Features
• Combination of XGS-PON OLT and GPON OLT optical
• Comply ITU-T G.984.5 (2014)/Amd.2 (10/2020) GPON &XGS-PON OPL Class C+
• Single fiber bi-directional data links with
- Tx1: 9.953Gbps 1577nm, Rx1: 9.953Gbps/2.488Gbps 1270nm
- Tx2: 2.488Gbps 1490nm, Rx2: 1.244Gbps 1310nm
• 1577nm continuous-mode transmitter with SOA+EML laser
• 1490nm continuous-mode transmitter with DFB laser
• 1270nm burst-mode receiver with APD-TIA
• 1310nm burst-mode receiver with APD-TIA
• 2-wire interface for integrated digital diagnostic Monitoring
• RoHS With Exemptions 7C(I)

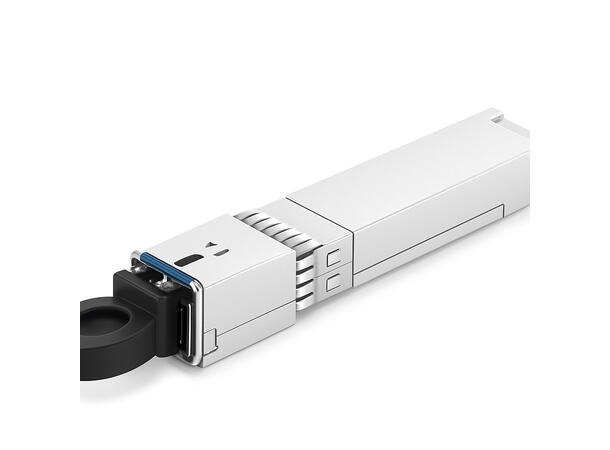

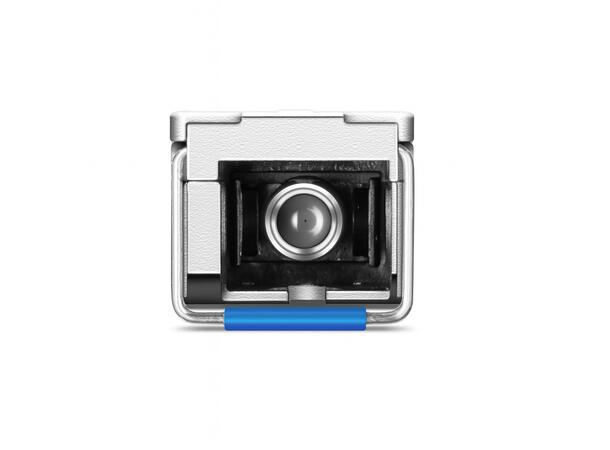

• SFP+ package with SC/UPC
• +3.3V power supply
• 40km Reach
• Operating case temperature: -40~85°C
