XGS-PON / GPON Combo OLT Transceiver – SFP-DD (Class D, I-Temp)
Product Overview

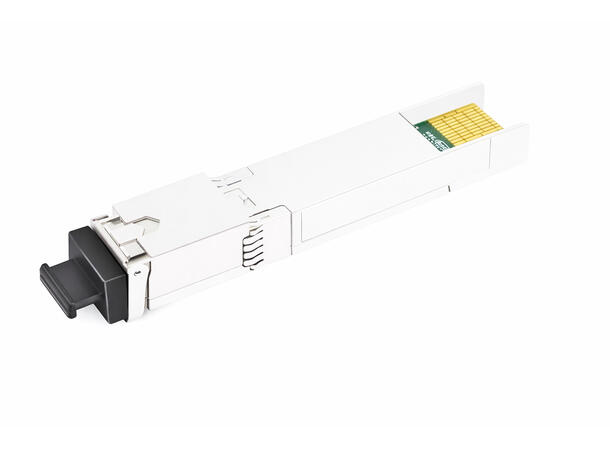

The GLOBALfiber XGS-PON / GPON Combo OLT Transceiver (Class D) is an ultra-long-reach SFP-DD optical module designed for up to 60 km PON deployments. It enables simultaneous XGS-PON and GPON operation on a single fiber, allowing operators to centralize OLT locations and extend coverage without modifying the passive network.
With very high transmit power, exceptional receiver sensitivity, and industrial temperature support, this Class D module is purpose-built for extreme distances, sparse geographies, and centralized access architectures where maximum optical margin is critical.
Key Features
• Dual-mode XGS-PON + GPON Combo OLT transceiver
• Class D optical performance for ultra-long-reach PON
• SFP-DD form factor for high-density OLT platforms
• Concurrent GPON and XGS-PON services on the same fiber
• Very high output power and deep receiver sensitivity
• Industrial temperature operation (I-Temp)
• SC optical interface
• Fully passive coexistence with existing PON infrastructure
Technical Specifications
General
• Transceiver Type: XGS Combo PON OLT Transceiver
• Form Factor: SFP-DD
• GLOBALfiber Part Number: SFPDD-XGSOLT-D-I
• Description: XGS-PON / GPON MPM Class D, Industrial Temperature
• Maximum Reach: 60 km
• Optical Power Budget: ~37 dB

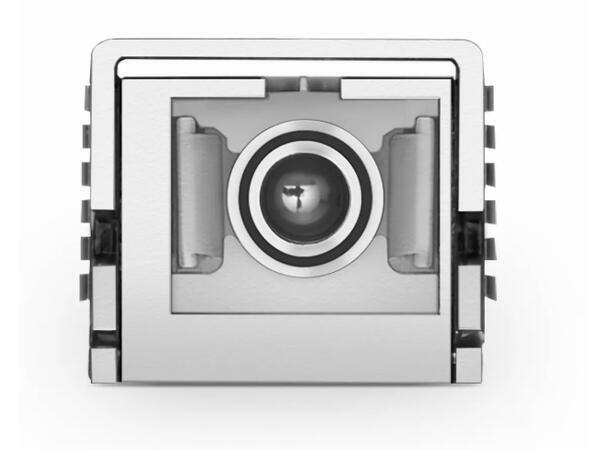

• Optical Interface: SC/UPC
• Operating Temperature: Industrial (I-Temp)
XGS-PON Optical Parameters
• Wavelength (TX / RX): 1577 nm TX / 1270 nm RX
• OLT Optical Class: Class D
• Transmit Output Power: +8 to +11 dBm
• Receiver Overload: –11 / –13 dBm
• Receiver Sensitivity: –32 / –33.5 dBm
GPON Optical Parameters
• OLT Optical Class: Class D
• Transmit Output Power: +6 to +10 dBm
• Receiver Overload: –15 dBm
• Receiver Sensitivity: –35 dBm
Standards Compliance
• ITU-T G.984 (GPON)
• ITU-T G.9807.1 (XGS-PON)
• Designed for SFP-DD based PON OLT platforms
Typical Applications
• Ultra-long-reach FTTH / FTTB networks (up to 60 km)
• Rural, remote, and geographically challenging deployments
• Highly centralized OLT architectures
• High split-ratio PON designs requiring extreme optical margins
