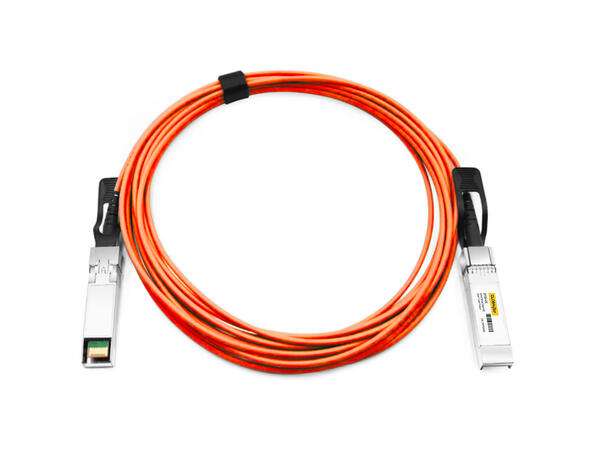

The GLOBALfiber S25G-AOC connects two SFP28 ports at 25 Gbps using an active optical cable with integrated transceivers and multimode fibre. Selectable lengths from 1 to 15 metres suit 25G server uplinks and switch-to-switch connections in top-of-rack and end-of-row deployments.
Available coding and compatibility
Coding options: Arista, Cisco, Custom, Extreme, Generic, Huawei, Juniper, NVIDIA-Mellanox(ETH).
Provide the equipment model, port configuration and software version for a compatibility check. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification |
Details |
| Product number |
S25G-AOC |
| Cable type |
Active optical cable; OM3/OM4 multimode fibre |
| Capacity |
25 Gbps |
| Applications |
25 Gigabit Ethernet; switch-to-switch and switch-to-NIC links |
| Cable length |
1, 2, 3, 5, 7, 10, 15 m; select the required length |
| Connector configuration |
SFP28 to SFP28 |
| Jacket |
OFNP (plenum-rated) |
Installation requirements
Verify 25G AOC support and the selected coding on both connected ports. Maintain a minimum cable bend radius of 30 mm.
