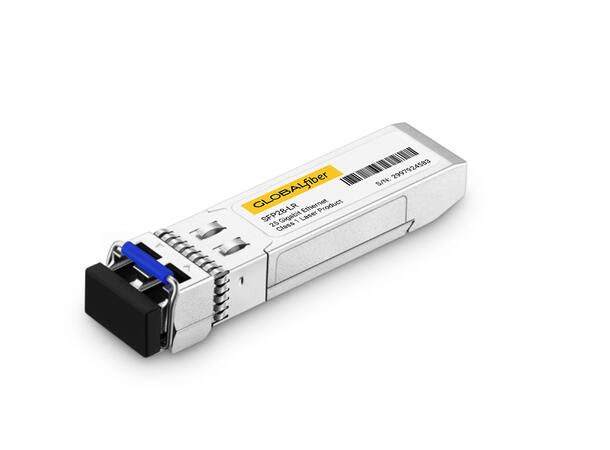

GLOBALfiber S25G-25G-LRI is a industrial-temperature 25G SFP28 LR optical transceiver for links up to 10 km over single-mode fiber. It connects Ethernet equipment across single-mode fiber routes between network locations.
Available coding and compatibility
Available coding: Arista, Cisco, Dell, Ericsson, Extreme, Fortinet, Generic, HP, Huawei, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding does not confirm compatibility with every model or protocol. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | S25G-25G-LRI |
|---|
| Form factor | SFP28 |
|---|
| Capacity | 25G |
|---|
| Applications | 25G Ethernet |
|---|
| Reach and fiber | 10 km over single-mode fiber |
|---|
| Nominal wavelength | 1310 nm |
|---|
| Optical connectors | Duplex LC |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
| Operating case temperature | -40°C to +85°C |
|---|
Installation requirements
Confirm host support for the intended rate and check the optical link budget before installation.
