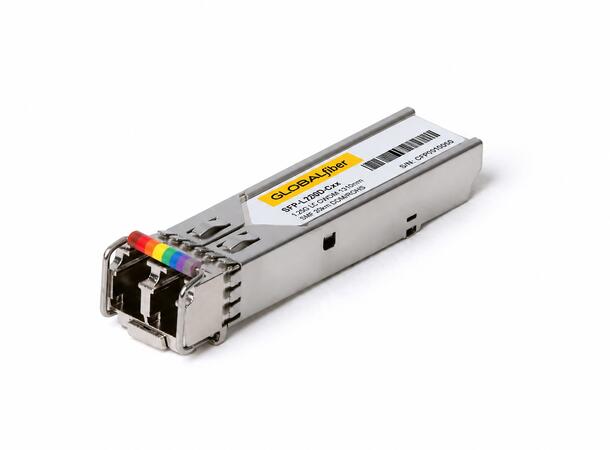

GLOBALfiber 1.25G CWDM SFP 41dB Industrial Transceiver

Product Overview

The GLOBALfiber 1.25G CWDM SFP 41dB Transceiver is a high-performance single-mode optical transceiver designed for Gigabit Ethernet, Fibre Channel, Metro Ethernet, and industrial fiber optic networks. Featuring an exceptional minimum optical power budget of 41 dB, this module enables ultra-long-distance CWDM transmission over single-mode fiber while maintaining outstanding reliability and stability.

Available in 18 CWDM wavelengths (1270–1610 nm), the module supports passive CWDM networks and is ideal for telecom operators, utilities, industrial automation, and enterprise backbone applications. It incorporates a high-power CWDM DFB laser, an APD receiver, and Digital Diagnostic Monitoring (DDM) for real-time optical performance monitoring.

Key Features

• Supports data rates up to 1.25 Gbps
• 41 dB minimum optical power budget
• Hot-pluggable SFP MSA compliant
• 18 CWDM wavelengths from 1270 nm to 1610 nm
• 20 nm channel spacing according to ITU-T G.694.2
• High-power CWDM DFB laser transmitter
• High-sensitivity APD receiver
• Digital Diagnostic Monitoring (DDM) compliant with SFF-8472
• Duplex LC optical interface
• Single +3.3 V power supply
• Low power consumption
• Class 1 laser product
• RoHS compliant
• Hot-pluggable design
• Suitable for commercial, extended, and industrial temperature applications

 Technical Specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 1.25 Gbps
• Fiber Type: Single Mode (SMF, 9/125 µm)
• Connector: Duplex LC
• Wavelength: CWDM, 1270–1610 nm
• CWDM Channels: 18 wavelengths
• Channel Spacing: 20 nm (ITU-T G.694.2)
• Transmitter Type: High-Power CWDM DFB Laser
• Receiver Type: APD (Avalanche Photodiode)
• TX Optical Power: +5 to +8 dBm
• Receiver Sensitivity: = -36 dBm
• Maximum Receiver Input Power: -10 dBm
• Minimum Optical Budget: 41 dB
• Operating Distance: Up to 200 km (depending on fiber attenuation and link design)
• Power Supply: Single +3.3 V
• Power Consumption: Max. 300 mA (Commercial/Extended), 600 mA (Industrial)
• Digital Diagnostics: SFF-8472 DDM (Digital Diagnostic Monitoring)
• Hot-Pluggable: Yes
• Standards Compliance: IEEE 802.3z, SFP MSA, Fibre Channel 1X
• Laser Safety: IEC 60825 Class 1
• RoHS Compliant: Yes
• Operating Temperature: -40°C to +85°C (Industrial)
• Storage Temperature: -40°C to +85°C

Applications

• Gigabit Ethernet
• Metro Ethernet
• CWDM transport networks
• Enterprise backbone
• Utility communication networks
• Industrial Ethernet
• Fibre Channel
• XDSL transport
• Data center interconnect
• Telecom access and aggregation networks

Standards Compliance

• IEEE 802.3z Gigabit Ethernet
• SFP Multi-Source Agreement (MSA)
• SFF-8472 Digital Diagnostics
• Fibre Channel 1X SM-LC-L FC-PI
• ITU-T G.694.2 CWDM Grid
• IEC 60825 Class 1 Laser
• RoHS Compliant
