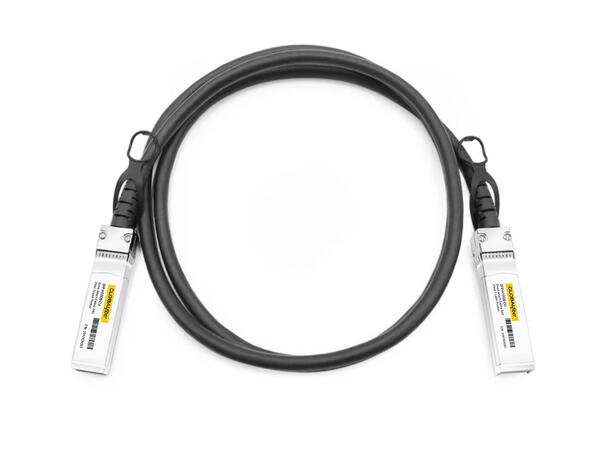

The SFP+ Passive Direct Attach Copper (DAC) Cable is a high-performance, cost-effective solution for short-reach 10Gb Ethernet and 10G Fibre Channel connections. Designed for maximum port density and low power consumption, this passive twinax cable enables hardware manufacturers and data-center operators to achieve efficient, flexible, and scalable network architectures.
With excellent signal integrity and zero active components, SFP+ DAC cables deliver ultra-low latency and reliable 10G performance—ideal for server-to-switch links, storage networks, and high-density rack environments. Each assembly meets or exceeds the electrical and mechanical requirements defined by Gigabit Ethernet and Fibre Channel industry standards.
Key Features
• Compliant with SFF-8431, SFF-8432, SFF-8472
• Supports up to 10.3125Gbps per channel
• Passive twinax 30AWG construction
• Operating temperature: 0°C to +70°C
• Very low power consumption (= 0.1W)
• Single 3.3V host power
• Supports 10 Gigabit Ethernet, Fibre Channel, InfiniBand (1×)
• Excellent signal integrity and low crosstalk
• RoHS compliant
Applications
• 10GbE Ethernet switching
• 10G Fibre Channel SAN environments
• Server-to-switch interconnects
• High-density top-of-rack (ToR) designs
• Storage arrays, blade servers, NICs, and HBAs
• Short-reach data-center connectivity
