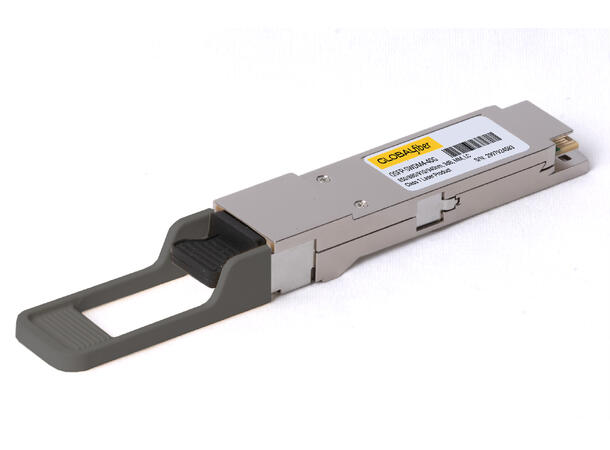

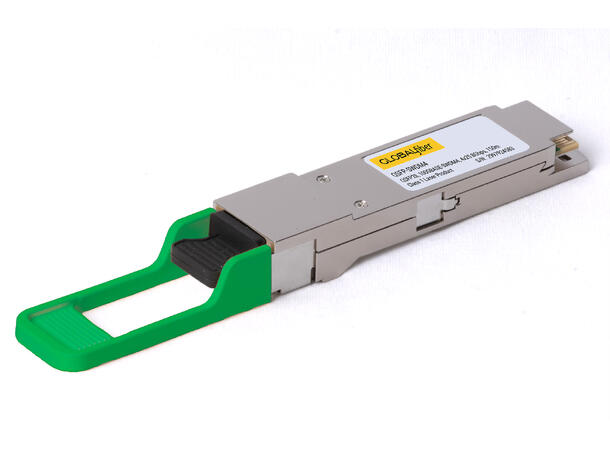

QSFP+ 40GbE-SWDM4 4x10G 150m

850/880/910/940nm 3dB MM LC

Varenr:Q40G-SWDM4

Koding

Alcatel

IBM

4 014,-Eks. mva

Bestillingsvare (Estimert 14 dager)

Teknisk info

Key Features
Dual bidirectional operation on wavelengths 850nm, 880nm, 910nm and 940nm
Hot-pluggable QSFP+ form factor
4x10Gb/s VCSEL-based SWDM transmitter
Supports 41.2Gbps aggregate bit rate
Power dissipation<3.5W
Up to 150m transmission on OM5, 100m on OM4, 70m on OM3
Case temperature range: 0°C to 70°C
Duplex LC receptacles
XLPPI electrical interface
TX Power: -6~+3.0dBm
Receiver Sensitivity: -9.1dBm
Powerbudget: 3dB
RoHS compliant

Application
40G Ethernet over Duplex MMF

Tilbehør

Datablad

Datablad_QSFP-SWDM4-40G.pdf
