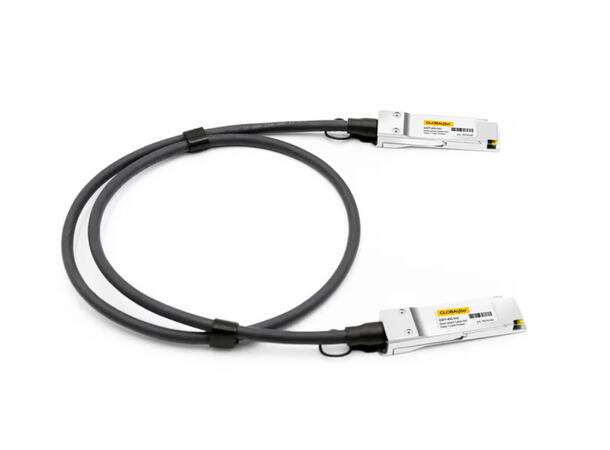

QSFP+ (Quad Small Form-Factor Pluggable Plus) Cable Assemblies provide a fast, reliable, and cost-efficient way to establish 40-Gigabit Ethernet links between QSFP+ ports. Designed for short-distance, high-bandwidth connections inside server rooms, edge clusters, and data-center racks, these cables deliver maximum performance with minimal latency and power consumption.
Whether connecting switches within the same rack or extending to adjacent racks, QSFP+ cables offer a stable, plug-and-play solution that eliminates the need for expensive optical transceivers on short runs.
Key Features
• Fully compliant with SFF-8436 industry specification
• 40Gbps total bandwidth (4 × 10Gbps channels)
• Supports lengths up to 7 meters for flexible data-center layouts
• 30AWG high-quality copper for stable signal integrity
• Operating temperature: 0°C to +70°C
• Low-power, single 3.3V operation
• RoHS compliant and environmentally safe
Applications
• 40G Ethernet (40GbE)
• QSFP+ MSA-compliant switches and servers
• In-rack and between-rack high-speed interconnects
• Top-of-Rack (ToR) and End-of-Row (EoR) network designs
