Key Features

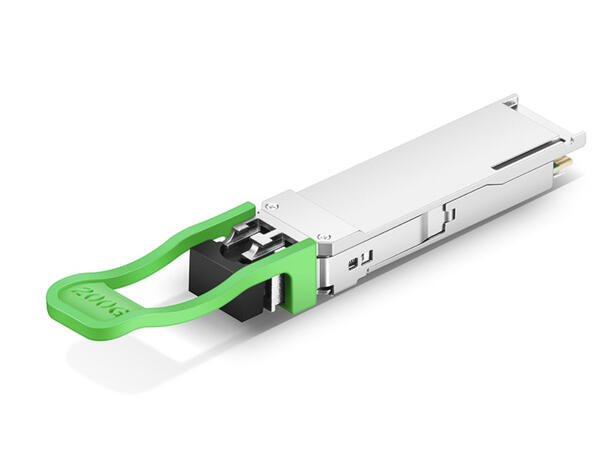

NVIDIA/Mellanox MMA1T00-HS Compatible 200GBASE-FR4 QSFP56 1310nm 2km DOM LC SMF InfiniBand HDR Optical Transceiver Module for Quantum Switches and ConnectX-6 HCA
4×53.125Gb/s electrical interface (200GAUI-4)
Up to 2km transmission on single mode fiber (SMF) with FEC
Transmitter Type: DFB
Receiver Type: PIN
Single +3.3V power supply
Case temperature range: 0 ~ +70C
Maximum power consumption: =6.5W
Duplex LC connector
TX Power: -4.2~+4.7dBm
Receiver Sensitivity: < -8.2dBm
Powerbudget: 4dB
Receiver overload: 4.7dBm
Extinction Ratio: >3.5dB
Protocols: IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, SFF-8679
RoHS complaint
Application
200Gb Ethernet
Infiniband 200 HDR
Datacenter connectivity
