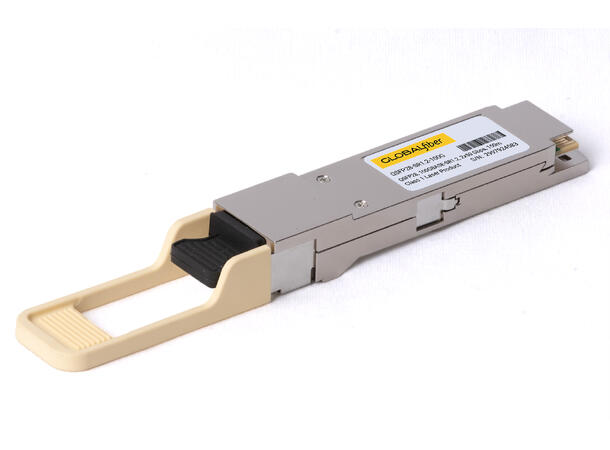

GLOBALfiber Q100G-SR1.2 is a 100G QSFP28 SR1.2 optical transceiver for short data centre links up to 100 m over OM4 multimode fiber. Its two 50G channels provide aggregate 100G connectivity through an LC optical interface.
Available coding and compatibility
Available coding: Check Point, NVIDIA(ETH), Arista, Ciena, Cisco, Dell, Extreme, Fortinet, Generic, HP, Huawei, Infinera, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model or protocol. Ethernet coding does not establish InfiniBand support. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | Q100G-SR1.2 |
|---|
| Form factor | QSFP28 |
|---|
| Capacity | 100G |
|---|
| Applications | 100G Ethernet; InfiniBand HDR interconnects, subject to host, link-mode and coding support |
|---|
| Power dissipation | 4 W maximum |
|---|
| Reach and fiber | Up to 100 m over OM4 multimode fiber |
|---|
| Optical connectors | LC |
|---|
Installation requirements
Check host KP4 FEC configuration for 100G operation. Confirm the intended Ethernet or InfiniBand link mode, remote optics and fiber requirements before installation.
