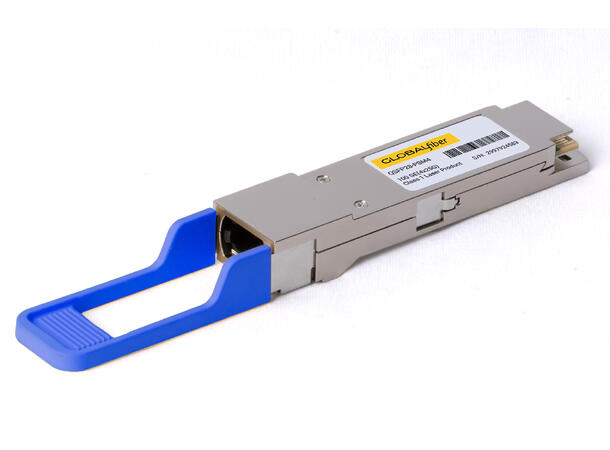

GLOBALfiber Q100G-PSM4 is a parallel single-mode 100G QSFP28 PSM4 transceiver for links up to 2 km. Four independent full-duplex optical channels use an MTP/MPO interface for data centre and supported InfiniBand interconnections.
Available coding and compatibility
Available coding: Check Point, Ubiquiti, Arista, Ciena, Cisco, Dell, Extreme, Fortinet, Generic, H3C, Huawei, Infinera, Intel, Juniper, NVIDIA-Mellanox(ETH), Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model or protocol. Ethernet coding does not establish InfiniBand support. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | Q100G-PSM4 |
|---|
| Form factor | QSFP28 |
|---|
| Capacity | 100G |
|---|
| Applications | 100G Ethernet; InfiniBand QDR and DDR interconnects, with suitable host and coding |
|---|
| Power dissipation | 3.5 W maximum |
|---|
| Reach and fiber | Up to 2 km over G.652 single-mode fiber |
|---|
| Nominal wavelength | 1310 nm |
|---|
| Optical connectors | MTP/MPO-8/12 |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
Installation requirements
Check MPO connector requirements, fiber polarity and host FEC settings before installation. Confirm the intended protocol and port configuration at both ends.
