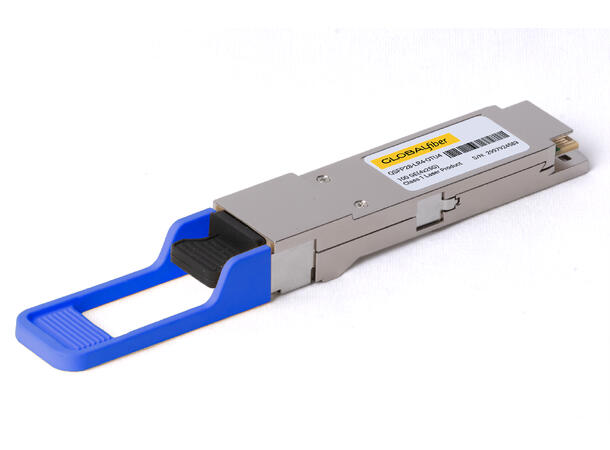

GLOBALfiber Q100G-LR4-OTU4 is a multirate QSFP28 LR4 transceiver for 100G Ethernet and OTN OTU4 links up to 10 km over single-mode fiber. Four LAN-WDM channels share duplex LC connectivity, with aggregate rates up to 111.8 Gb/s in OTU4 operation.
Available coding and compatibility
Available coding: Check Point, NVIDIA(ETH), Arista, Ciena, Cisco, Dell, Extreme, Fortinet, Generic, Huawei, Infinera, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model or protocol. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | Q100G-LR4-OTU4 |
|---|
| Form factor | QSFP28 |
|---|
| Capacity | 100G |
|---|
| Applications | 100GBASE-LR4 Ethernet; OTN OTU4, with suitable host and coding |
|---|
| Power dissipation | <4 W |
|---|
| Reach and fiber | Up to 10 km over single-mode fiber |
|---|
| Nominal wavelength | 1295.56, 1300.05, 1304.58 and 1309.14 nm |
|---|
| Optical connectors | Duplex LC |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
Installation requirements
Select the host port mode and coding for Ethernet or OTU4 operation. Check the optical link budget and remote interface before installation.
