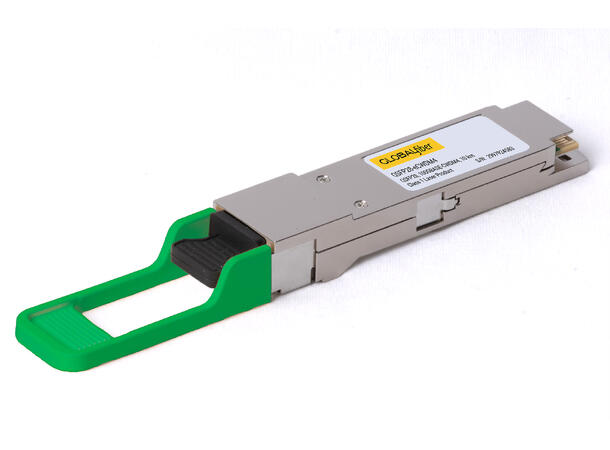

GLOBALfiber Q100G-eCWDM4 is an extended CWDM4 QSFP28 transceiver for 100G single-mode connections up to 10 km with host RS-FEC. Four CWDM wavelengths share a duplex LC interface for data centre, campus and enterprise links.
Available coding and compatibility
Available coding: Check Point, NVIDIA(ETH), Arista, Ciena, Cisco, Dell, Extreme, Fortinet, Generic, H3C, Huawei, Infinera, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model or protocol. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification |
Details |
| Product number |
Q100G-eCWDM4 |
| Form factor |
QSFP28 |
| Capacity |
100G |
| Applications |
100G Ethernet; data centre and campus links |
| Power dissipation |
3.5 W maximum |
| Reach and fiber |
Up to 10 km over single-mode fiber with host RS-FEC |
| Nominal wavelength |
1271, 1291, 1311 and 1331 nm |
| Optical connectors |
Duplex LC |
| Diagnostics |
Digital optical monitoring (DOM/DDM) |
Installation requirements
Enable host RS-FEC for the specified maximum distance. Check the optical link budget and host port configuration before installation.
