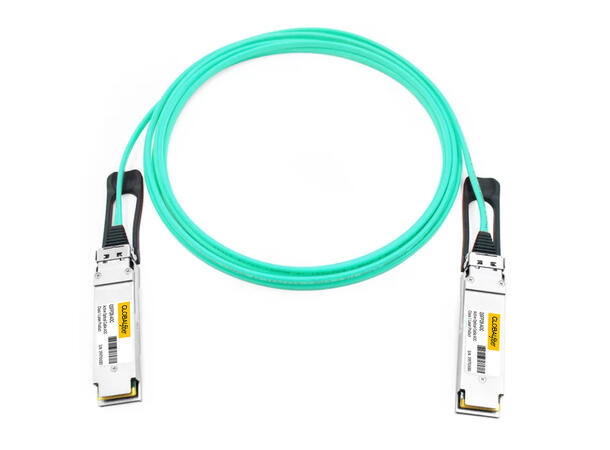

QSFP-100G-AOC1M – 100G QSFP28 to QSFP28 Active Optical Cable

The QSFP-100G-AOC is a high-performance 100G QSFP28 Active Optical Cable (AOC) designed for short-range, high-bandwidth interconnects in modern data centers. AOC features integrated QSFP28 transceivers and operates over OM3/OM4 multimode fiber (MMF), making it ideal for linking switches, servers, and storage within or between adjacent racks.
Engineered for 100Gbps Ethernet transmission, this breakout cable complies with QSFP28 MSA and RoHS-6 environmental standards, ensuring full interoperability and eco-friendly operation.

Specifications – QSFP28-100G-AOC
• Form Factor: QSFP28 to QSFP28
• Maximum Data Rate: 100Gbps
• Minimum Bend Radius: 30mm
• Cable Length: 1 meter (3.28 feet)
• Jacket Material: OFNP (Plenum-rated)
• Cable Type: Active Optical Cable (AOC)
• Transmitter Type: VCSEL (Vertical-Cavity Surface-Emitting Laser)
• Receiver Type: PIN photodiode
• Wavelength: 850nm
• Power Consumption: < 2.2W
• Power Supply: 3.3V
• Operating Temperature Range: 0°C to 70°C
• Supported Protocols: IEEE 802.3bm, SFF-8665
• Application: 100G Ethernet connections
• Warranty: 5 Years
