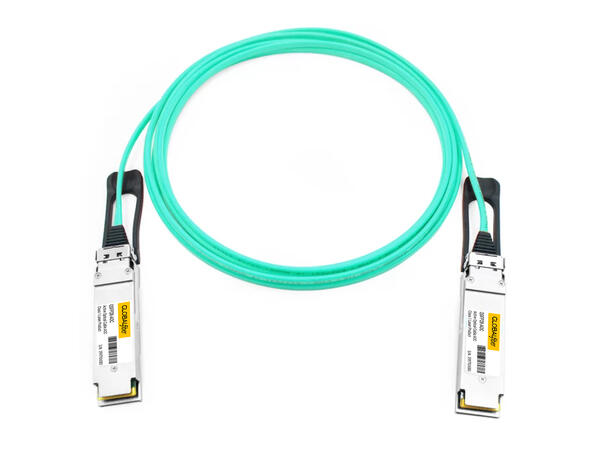

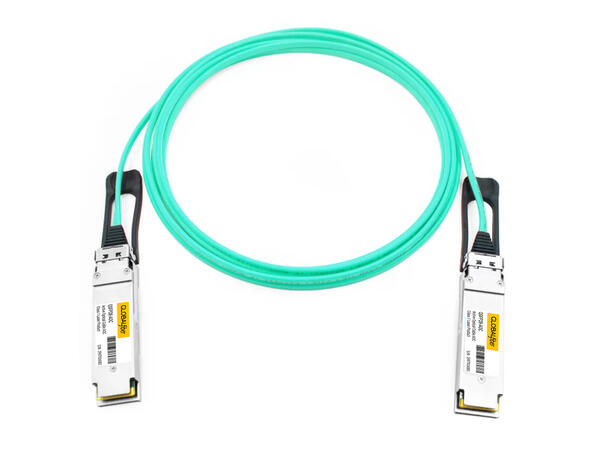

The NVIDIA/Mellanox MFA1A00-E0xx Compatible Active Optical Cable (AOC) delivers high-performance 100Gb/s QSFP28 to QSFP28 connectivity over 10 meters, fully compliant with QSFP28 MSA and IEEE 802.3bm standards. Featuring four parallel lanes of 25Gb/s each, this cable ensures optimal signal integrity and bandwidth for InfiniBand EDR applications.
Designed for modern data centers and HPC environments, this 100G AOC is a reliable, low-power, and cost-effective alternative to transceivers and fiber patch cords. It is ideal for connecting NVIDIA GPU clusters, InfiniBand networks, and high-speed storage fabrics.
Compared to DAC cables, this AOC is lighter, more flexible, supports longer distances, and improves airflow within dense server racks—making it the perfect choice for high-bandwidth and low-latency environments.
Product Highlights – NVIDIA/Mellanox Compatible AOC Cable (MFA1A00-E0xx)
• Compatibility: Fully compatible with NVIDIA/Mellanox InfiniBand systems
• Model: MFA1A00-E0xx
• Form Factor: QSFP28 to QSFP28
• Maximum Data Rate: 100Gbps (4x25Gbps lanes)
• Cable Length: 10 meters
• Cable Type: Active Optical Cable (AOC)
• Jacket Material: OFNP (plenum-rated for safety in airflow spaces)
• Minimum Bend Radius: 30mm
• Wavelength: 850nm
• Transmitter Type: VCSEL (Vertical Cavity Surface Emitting Laser)
• Receiver Type: PIN photodiode
• Modulation Format: NRZ (Non-Return-to-Zero)
• Power Supply: 3.3V
• Power Consumption: <2.2W
• Digital Diagnostics (DDM/DOM): Supported
• Protocols: IEEE 802.3bm, SFF-8665
• Application: Ideal for InfiniBand EDR interconnects, GPU clusters, and high-performance computing
• Temperature Range: 0°C to 70°C
• Warranty: 5 years
