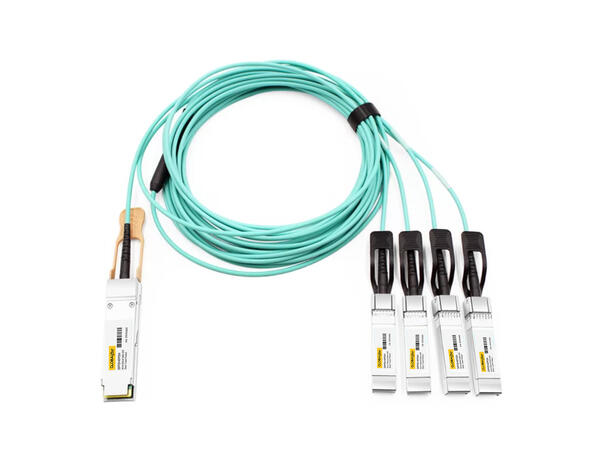

100G QSFP28 to 4x 25G SFP28 Breakout AOC – High-Speed 100G/25G Connectivity

The 100G QSFP28 to 4x 25G SFP28 Breakout Active Optical Cable (AOC) is engineered to deliver high-performance 100G Ethernet and InfiniBand EDR connectivity with four parallel 25G lanes. This active breakout cable provides a simple, cost-effective solution for short-distance, high-bandwidth interconnects using multi-mode fiber (MMF).
Designed for use in data centers, high-performance computing (HPC), and storage area networks (SAN), this AOC supports transmission distances ranging from 0.5 meters to 100 meters, making it ideal for top-of-rack, mid-row, and cross-rack deployments.

Specifications – QSFP-4SFP25G-AOC1M Breakout AOC
• Form Factor: QSFP28 to 4 x SFP28
• Maximum Data Rate: 100Gbps
• Minimum Bend Radius: 30mm
• Cable Length: 1 meter (3.28 feet)
• Cable Type: OM3 Multimode Fiber
• Jacket Material: OFNP (Plenum-rated)
• Wavelength: 850nm
• Power Consumption:
o 100G: < 2.2W
o 25G: < 0.8W
• Transmitter Type: VCSEL (Vertical-Cavity Surface-Emitting Laser)
• Receiver Type: PIN photodiode
• Commercial Temperature Range: 0°C to 70°C
• Supported Protocols: QSFP28 MSA, SFP28 MSA
• Application:
o 100G to 4x 25G Ethernet breakout
o 100GBASE-SR4 Ethernet
o 25GBASE-SR Ethernet
• Warranty: 5 Years
