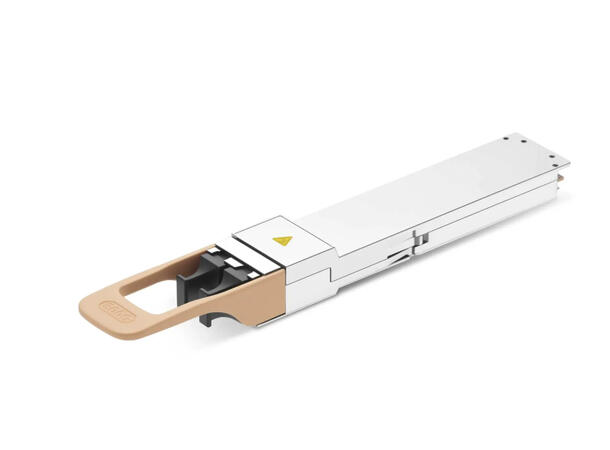

OSFP 400G Flat Top SR8 8x50Gbps PAM4

400GBASE-SR8 OSFP PAM4 Optical Transceiver Module, MMF, 850nm, 100m, MTP/MPO, DOM, Flat Top.

The 400GBASE-SR8 OSFP transceiver features an MTP/MPO-16 connector and supports transmission distances of up to 100 meters over parallel OM4 multimode fiber. It complies with OSFP MSA, IEEE 802.3cd, and 400GAUI-8 standards.

The 400 Gigabit Ethernet signal is transmitted over eight lanes, making it ideal for 400G Ethernet, data centers, and cloud network environments. The module also supports 8 × 50G-SR connections, delivering flexible and high-performance connectivity.

400GBASE-SR8 OSFP Optical Transceiver – Specifications
* Form Factor: Single-port OSFP (Flat Top)
* Max Data Rate: 425Gbps
* Wavelength: 850nm
* Max Cable Distance: 100m @ OM4
* Connector: MPO-16/APC
* Media: Multimode Fiber (MMF)
* Transmitter Type: VCSEL
* Receiver Type: PIN
* TX Power: –6.5 to 4.0dBm
* Minimum Receiver Power: –8.4dBm
* Power Budget: 1.9dB
* Receiver Overload: 4.0dBm
* Max Power Consumption: 10W
* Extinction Ratio: 3dB
* DDM/DOM: Supported
* Commercial Temperature Range: 0 to 70°C (32 to 158°F)
* Modulation (Electrical): 8 × 50G PAM4
* Modulation (Optical): 8 × 50G PAM4
* CDR (Clock and Data Recovery): TX and RX
* Inbuilt FEC: No
* Core Size: 50µm
* Packaging Technology: Chip on Board (COB)
* Protocols: IEEE 802.3cd, OSFP MSA, CMIS 4.1
* Warranty: 5 Years
