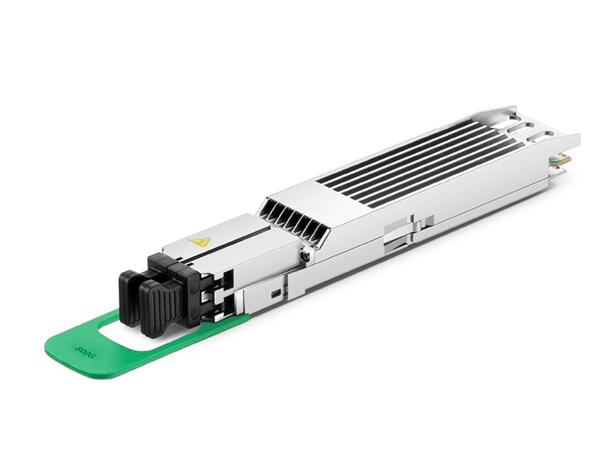

NVIDIA/Mellanox MMS4X50-NM Compatible 800G OSFP 2xFR4 PAM4 InfiniBand NDR Optical Transceiver – SMF, 1271–1331nm, 2km, Dual LC/UPC, DOM, Finned Top

The MMS4X50-NM Compatible 800G OSFP 2xFR4 Optical Transceiver is purpose-built for InfiniBand NDR systems, delivering 800Gbps of high-speed data through a twin-port 2x400G architecture. Each port supports 4x100G PAM4 channels over single-mode fiber (SMF) using CWDM4 wavelengths (1271nm, 1291nm, 1311nm, 1331nm), with a maximum reach of 2 kilometers.
This multiplexed 8-channel transceiver uses two LC duplex connectors, making it ideal for high-density deployments in supercomputing, AI/ML clusters, and HPC data centers. The integrated finned heatsink ensures effective thermal dissipation, optimized for Quantum-2 air-cooled switches and similar infrastructure.
Compliant with OSFP MSA and InfiniBand NDR standards, and supporting Digital Optical Monitoring (DOM), this 800G optical module is a high-efficiency interconnect for next-generation computing environments requiring low latency and extreme bandwidth.

Specifications:
Form Factor: Twin-port OSFP Finned Top
Max Data Rate: 850Gbps (8x 106.25Gbps)
Wavelength: 1271nm, 1291nm, 1311nm and 1331nm
Max Cable Distance: 2km
Connector: Dual Duplex LC/UPC
Media: SMF
Transmitter Type: EML
Receiver Type: PIN
TX Power: -3.2~4.4dBm
Minimum Receiver Power: -7.2dBm
Power Budget: 4dB
Receiver Overload: 4.4dBm
Max Power Consumption: 16.5W
Extinction Ratio: >3.5dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C
Modulation (Electrical): 8x100G-PAM4
Modulation (Optical): Dual 4x100G-PAM4
Protocols: IEE802.3ck, IEEE 802.3cu, OSFP MSA

CMIS 5
Warranty: 5 Years

Application
InfiniBand
