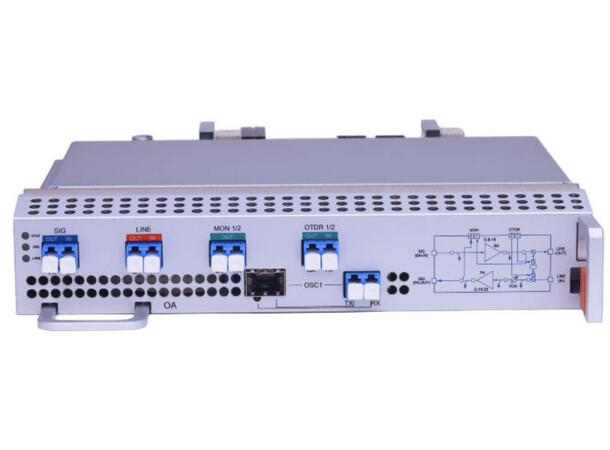

GF-6800-BA20PA12 – C-Band EDFA Booster & Pre-Amplifier Module
The GF-800-BA20PA12 is a high-performance dual-function C-band EDFA optical amplifier module for the HT6800 DCI DWDM Optical Transmission System.
The module integrates a Booster Amplifier (BA) and Pre-Amplifier (PA) in a single card, providing optical amplification on both the transmit and receive sides of a DWDM link. It is designed to extend transmission distance and compensate for optical losses in metro, DCI, backbone and long-haul DWDM networks.
The integrated EDFA architecture provides low-noise amplification, adjustable gain and multiple operating modes, including Automatic Gain Control (AGC), Automatic Power Control (APC) and Automatic Current Control (ACC). The module also provides OSC, OTDR and optical monitoring interfaces for managed optical networks.
Technical Specifications
• Product type: Dual-function EDFA Optical Amplifier Module
• Model: GF-6800-BA20PA12
• Platform: GF-6800 DCI DWDM Optical Transmission System
• Amplifier configuration: 1 × Booster Amplifier (BA), 1 × Pre-Amplifier (PA)
• Optical amplifier technology: Erbium-Doped Fiber Amplifier (EDFA)
• Operating optical band: C-band
• Operating wavelength range: 1528–1565 nm
• Maximum optical output power: up to +20 dBm*
• Supported gain range: 8–33 dB*
• Typical noise figure: 5.0 dB
• Typical gain flatness: 1.0 dB
• Adjustable input threshold: down to -34 dBm
• Polarization Dependent Loss (PDL): =0.3 dB
• Polarization Dependent Gain (PDG): =0.4 dB
• Polarization Mode Dispersion (PMD): =0.5 ps
• Pump leakage: =-29 dBm
• Return loss: =45 dB
• VOA gain adjustment: ±5 dB
• Chassis occupancy: 2 slots
Amplifier Functions
Booster Amplifier (BA)
• Installed on the transmit/line-output side
• Increases optical launch power into the transmission fiber
• Designed to compensate for fiber, DWDM MUX and other passive optical losses
• Typical BA input power specified by the platform: -10 dBm
• Suitable for extending DWDM transmission distance
Pre-Amplifier (PA)
• Installed on the receive/line-input side
• Amplifies low-level incoming optical signals before the receiver
• Designed to improve receiver-side optical power budget
• Suitable for long-distance links with high span attenuation
• Low-noise EDFA architecture
Operating & Management Functions
• Automatic Gain Control (AGC)
• Automatic Power Control (APC)
• Automatic Current Control (ACC)
• Adjustable AGC gain
• Adjustable APC output power
• Adjustable pump control
• Integrated Variable Optical Attenuator (VOA)
• VOA gain adjustment range: ±5 dB
• Optical power monitoring via MON port
• OSC interface for remote network management
• OSC wavelength: 1510 nm
• OTDR interface for fiber monitoring and fault detection
• OTDR wavelength: 1625 nm
• Supports remote monitoring through the HT6800 management platform
These functions, including AGC/APC/ACC, OSC, OTDR and MON monitoring, are explicitly listed for the OA/OLA module.
Mechanical & Environmental Specifications
• Module dimensions: 216 × 254 × 42 mm (W × D × H)
• Operating temperature: -10°C to +60°C
• Storage temperature: -40°C to +80°C
• Relative humidity: 5% to 95%, non-condensing
• Maximum power consumption: =30 W
• Compatible chassis: GF-6800 series
• Hot-swappable modular architecture
Typical Applications
• 100G/200G/400G coherent DWDM transmission
• Data Center Interconnect (DCI)
• Metro DWDM networks
• Long-haul DWDM links
• Point-to-point optical transmission
• Booster amplification after DWDM MUX
• Pre-amplification before DWDM DEMUX/receiver
• Compensation for high fiber-span attenuation
• Links using passive DWDM MUX/DEMUX systems
