Mini SFP to RJ-45 Media Converter

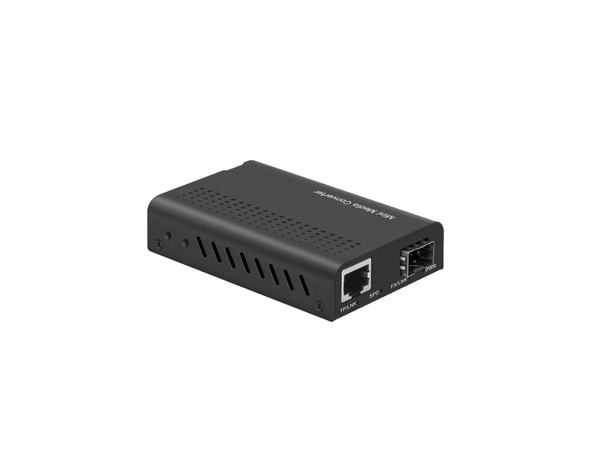

Mini Gigabit Ethernet Fiber Media Converter

Upgrade your network to the next level with our Gigabit Fiber Media Converter. Extend communication distance and enjoy high-performance data transmission via fiber optic cable. Build ISP network solutions for FTTH or FTTC, FTTBs, or small office environments with ease. Our Media Converter Chassis is a 1U height 12 slots rackmount chassis designed to accommodate all your conversion needs..

Ports: 1×10/100/1000Base-T RJ45, 1x1000Base-X SFP/1×9
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Jumbo Frame: 10K
LEDs, TP/LNK,1000M, FX/LNK, PWR
Operating Temperature: 0C to 50C

Power
Power Input: 1
Operating Voltage: 5-12VDC
Power Consumption: 3W Max(100Mb & 1Gb Models)

Mechanical
Housing: Metal
Dimensions: 90mm×60mm×20mm(W x D x H)
Weight: 0.12kg/0.26lb(Bare Hardware)
Installation: Desktop, Wall Mount, Rack(*require optional rack chassis)
