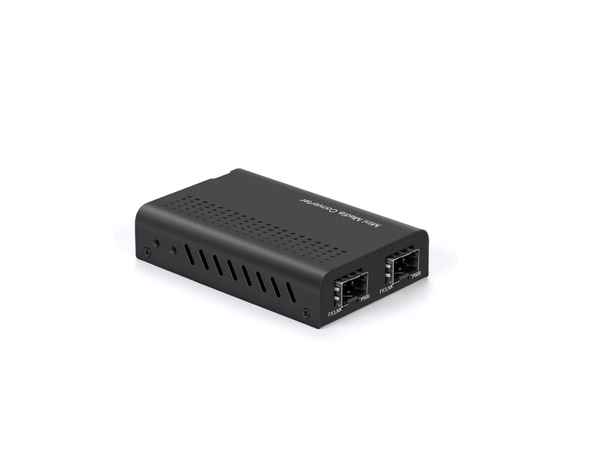

Mini SFP/SFP+ Media Converter

Mini Unmanaged 10G Ethernet Fiber to Fiber Media Converter

Extending 100M-10G Fiber Network Interconnection
Fiber to Fiber Media Converters is designed to extend fiber network communication distances between two fiber nodes. They’re perfect for businesses that need to connect buildings or campuses with 100M to 10G connections.

Optical Slot: 1x 1.25G/2.5G/5G/10GSFP/SFP+
Standard: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3bz, IEEE802.3an, IEEE802.3ae
Jumbo Frame: 16K
LEDs, TP/LNK, SPD, FX/LNK, PWR

Power
Power Input: 1
Operating Voltage: 5-12VDC
Power Consumption: 3W Max(100Mb & 1Gb Models), 5W Max(10Gb Models)

Mechanical
Housing: Metal
Dimensions: 90mm×60mm×20mm(W x D x H)
IP Rating: IP30
Weight: 0.12kg/0.26lb(Bare Hardware)
Installation: Desktop, Wall Mount, Rack(*require optional rack chassis)
