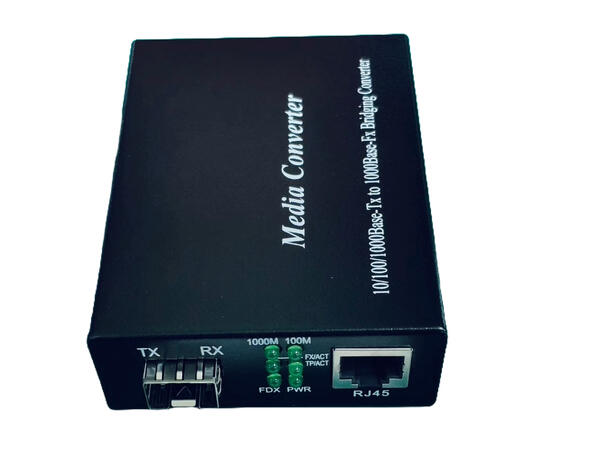

Gigabit Ethernet 1 x 10/100/1000Base-T with 1 SFP s lot

The 10/ 100/ 1000M Ethernet media converters adopts switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections :
10/ 100/ 1000Base-T and 1000Base-LX/LH. It inter-converts electrical signals of 10/ 100/ 1000Base-T twisted pairs with optical signals of
1000Base-LX/LH.

Features
- Supporting inter-conversion between 10/100/1000Base-TX and 1000BaseLX/LH
- Supporting full-duplex and half-duplex and its auto-sensed
- Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
- Supporting the transmission of extra-long VLAN packets
- Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
- Supporting LFP (Select by DIP Switch freely)

Supporting the transmission of extra-long packets up to1600 bytes in the "store-and-forward" mode and up to 9000bytes jumbo frames in the "Cut-through" mode (Select by DIP Switch freely)

Specifications
- 10/ 100/ 1000Mbps Gigabit Ethernet
- IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802. 1qVLAN,IEEE802. 1p QoS,IEEE802. 1d Spanning Tree
- SFP module : 550m-120Km, CAT5/CAT5E twisted pair: 100m
- MAC Address table, 2k
- Store-and-forward: <10µs; cut-through: 1µs
- MTBF: 100,000 hours
- Power: DC5V 1A (external)
- Power consumption: Full load <3W
- Operating temperature: -10~55ºC
- Dimensions: 26mm (H) * 70mm (W) * 94 mm (D) (external power supply)
