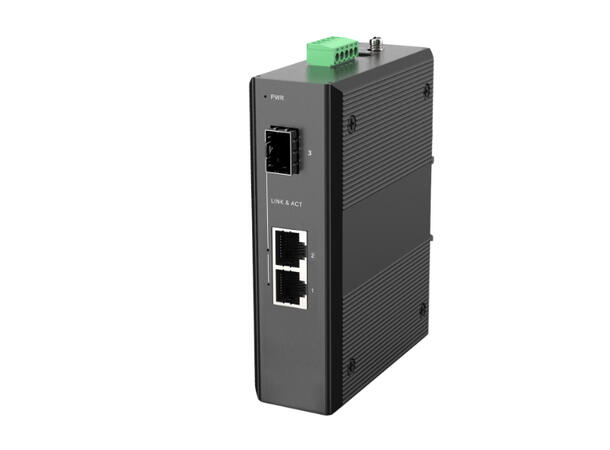

2 x 10/100M Port Industrial Fiber Media Converter
The GF-IMC-2RJ45-SFP Industrial Fiber Media Converter is a reliable and cost-effective solution tailored for semi-outdoor space CCTV cameras and various industrial networking applications. Engineered to thrive in challenging environments, this robust switch supports 100M and 1000M Ethernet connections, ensuring high-speed data transfer without compromising performance. With its impressive operating temperature range of -20C to +70C, is designed to withstand harsh conditions while maintaining optimal functionality. Its compact design allows for easy deployment in tight spaces, making it an ideal choice for enhancing surveillance systems or facilitating seamless communication across industrial networks. Whether used in factories or outdoor monitoring setups, this Industrial Ethernet Switch guarantees stability and efficiency where it matters most.

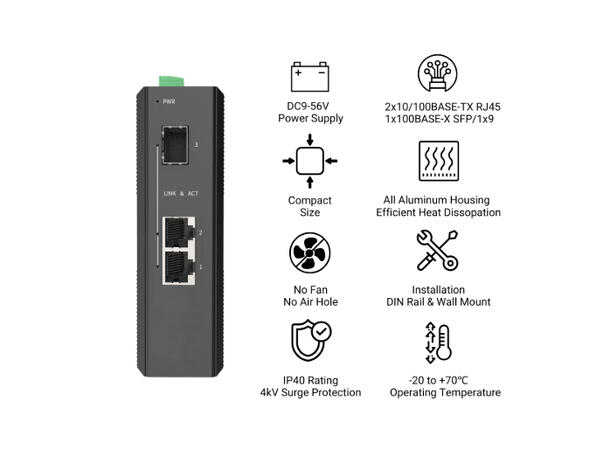

Product Features
- Ultra compact size – ideal for confined spaces, including camera housings and roadside cabinets
- 20°C to +70°C temperature maintains performance in extreme conditions
- DIN rail or wall mountable – quick to install and remove for maintenance (an optional magnetic mount is also available)
- All SFP ports support single and multimode, single or dual fiber options up to 120 km
- Auto-Negotiation (802.3u) – automatically determines the best connection speed
Hardware Specifications
- Product FR-6N1102
- Copper Ports: 2×10/100BASE-TX RJ45 Auto-MDI/MDI-X , Port 1
- Fiber Ports: 1x100BASE-X SFP Slot or 1×9 Optical Module, Port 2
- Enclosure: IP40 aluminum case
- Installation: DIN-Rail and Wall-mount
- Dimension: 120 x 90 x 35 mm
- Weight: 370g(Bare weight), 470g(With package)
- Surge Protection: ±4kV DC, ±2kV RJ45
Switching
- Switch Architecture: Store-and-Forward
- Switch Fabric: 1.8Gbps/non-blocking
- Forward Filter Rate: 14,880pps(10Mbps),148,800pps(100Mbps)
- Packet Buffer Size: 1 Mbits
- Maximum Packet Length: 1536 bytes
- MAC Address Table: 2K entries, automatic source address learning and aging
- Flow Control: EEE 802.3x pause frame for full duplex, Back pressure for half duplex
Power
- Power Input: 2

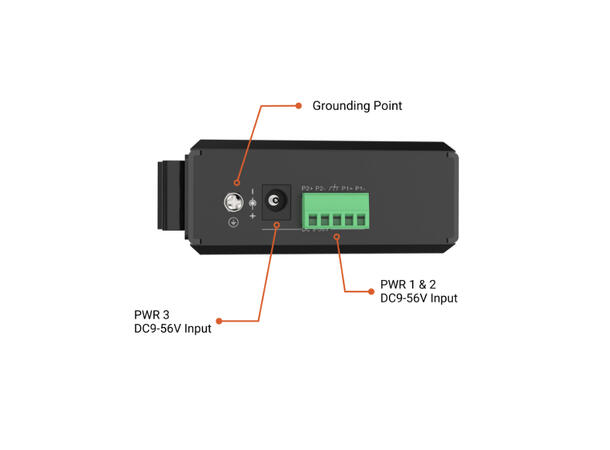

- Power Connector: 1 removable 5-contact terminal blocks, Pin 1/2 for Power 1, Pin 4/5 for Power 2
- Operating Voltage: 9-56V DC
- Power Consumption: 4 Watts Max
- Protection: Reverse Polarity, Overload Current
Environmental
- Operating Temperature: -20C~70C
- Storage Temperature: -40C~85C
- Operating Humidity: 5%~90% (non-condensing)
- Heat Dissipation: 7 BTU/h
- Cooling Passive Cooling
- MTBF: >500,000 hours @MIL-HDBK-217F GF 25?
- Standard Compliance: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3az Energy Efficient Ethernet
- ISO: Manufactured in ISO-9001facility
- Safety: IEC62368-1:2020+A11:2020
- EMI: FCC Part 15B Class A, IEC 61000-3-2
- EMS: IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV
- IEC61000-4-5 Surge: Power: ±4kV; RJ45:±2kV
