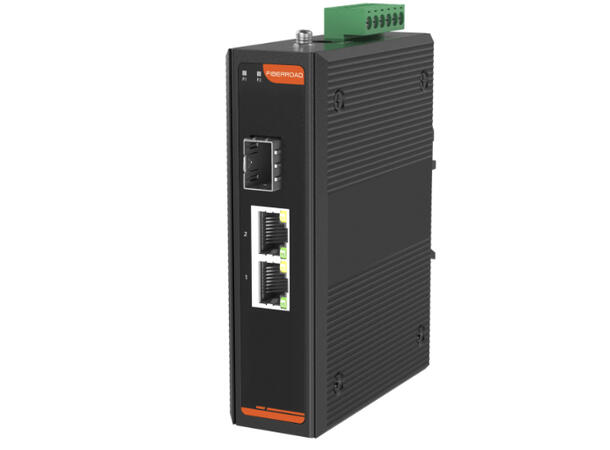

2 Port Gigabit Industrial Fiber Media Converter

The 1000Mb Industrial Unmanaged Fiber Media Converter provides reliable Gigabit Ethernet (1000Base-T to 1000Base-FX/LX) connectivity, perfect for high-bandwidth industrial applications such as machine vision, automated production lines, and real-time data logging. By converting copper Ethernet to fiber optics, it eliminates signal degradation over long distances, supporting transmissions up to 120km with single-mode fiber. Its plug-and-play design ensures seamless integration into existing networks, delivering fast, stable data transfer without the complexity of managed systems—ideal for environments prioritizing simplicity and speed.

Hardware Specifications

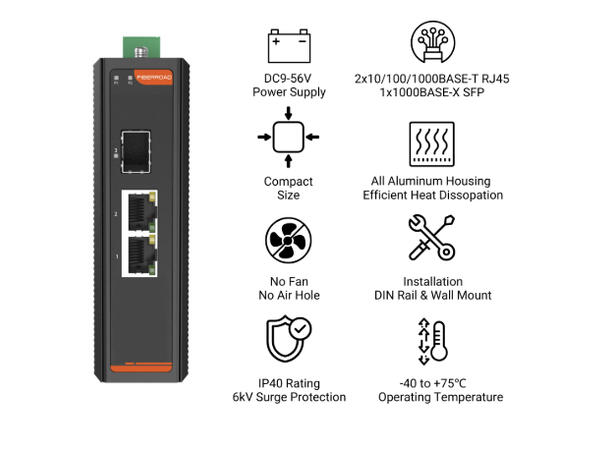

- Product: FR-7N3102
- Copper Ports: 2×10/100/1000BASE-TX RJ45 Auto-MDI/MDI-X (Port 1-2)
- Fiber Ports: x1000BASE-X SFP Slot (Port 2)
- Enclosure: IP40 aluminum case

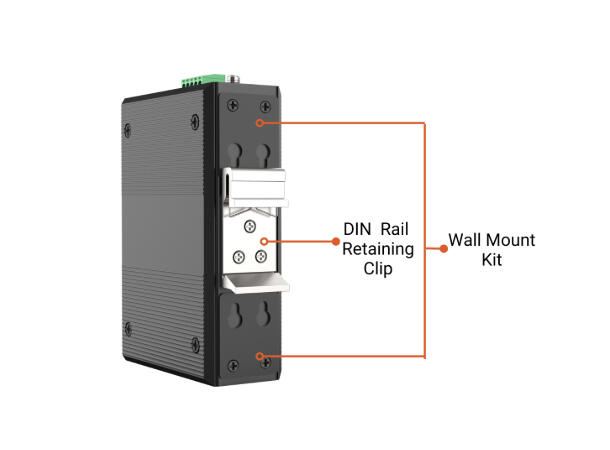

- Installation: DIN-Rail and Wall-mount
- Dimension: 120 x 90 x 35 mm
- Weight: 400g(Bare weight), 500g(With package)
- Surge Protection: ±6kV DC, ±4kV RJ45 ±6kV DC, ±6kV RJ45
- Switch Architecture:Store-and-Forward
- Switch Fabric: 14Gbps/non-blocking
- Forward Filter Rate: 14,880pps(10Mbps), 148,800pps(100Mbps), 1,488,000pps(1000Mbps)
- Packet Buffer Size: 512 Kbits
- MAX. Packet Length: 9K bytes
- MAC Address Table:2K entries, automatic source address learning and aging

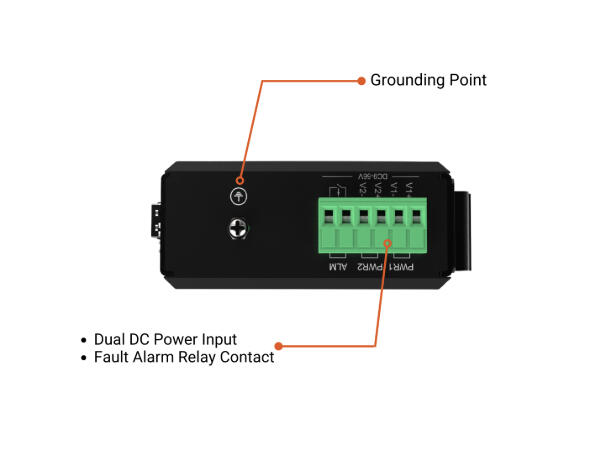

- Power Input: 2
- Power Connector: 1 removable 6-contact terminal blocks
- Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm( As required)
- Operating Voltage: DC9-56V
- Power Consumption: 5 Watts Max (without PoE load)
- Protection Reverse Polarity, Overload Current

Environmental
- Operating Temperature: -40 to +75C
- Storage Temperature: -40 to +85C
- Operating Humidity 5%~95% (non-condensing)
- Cooling: Passive Cooling
- MTBF: >500,000 hours @Telcordia SR-332 GF 30°C
