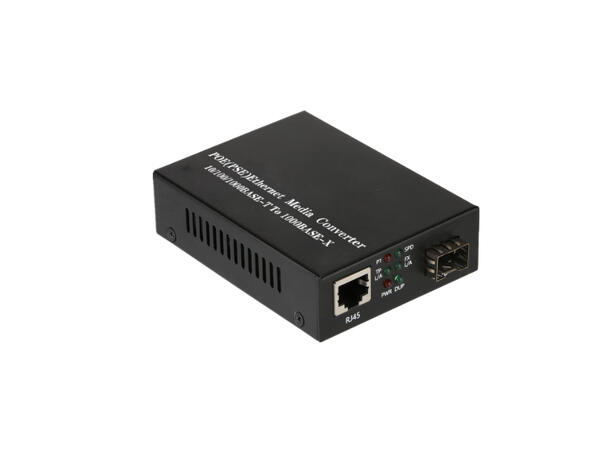

Gigabit PoE Fiber Media Converter with LFPT – External Power Supply
Overview
The Gigabit PoE Fiber Media Converter with LFPT extends Ethernet networks over fiber while delivering Power over Ethernet (PoE) to remote devices. The converter seamlessly converts 10/100/1000BASE-T copper Ethernet to 1000BASE-X fiber, allowing reliable long-distance network connectivity.
Equipped with Link Fault Pass-Through (LFPT) functionality, the converter automatically propagates link failure information across the network, helping administrators quickly detect faults and improve network reliability.
With support for IEEE 802.3af/at PoE standards and a compact metal housing, this media converter is ideal for powering and connecting devices such as IP cameras, wireless access points, and VoIP phones in surveillance and enterprise networks.
Key Features
• Gigabit Ethernet-to-fiber media converter with PoE
• 1 × 10/100/1000BASE-T RJ45 PoE port
• 1 × 1000BASE-X fiber port (SFP or 1×9 optical interface)
• External power supply (AC adapter to 52 V DC input)
• Supports IEEE 802.3af / IEEE 802.3at PoE+
• Up to 30 W PoE output power
• Link Fault Pass-Through (LFPT) for improved network fault detection
• Supports single-mode and multimode fiber
• Transmission distance up to 550 m (MMF) or 10 km (SMF) depending on optics
• Auto-negotiation and Auto-MDI/MDI-X
• Plug-and-play installation
• Metal enclosure (IP30) for reliable operation
• Desktop or wall-mount installation
Technical Specifications
Network Interfaces
• Copper Port: 1 × 10/100/1000BASE-T RJ45
• Fiber Port: 1 × 1000BASE-X (SFP or 1×9 optical)
• Duplex Mode: Full / Half Duplex
• Auto Negotiation: Supported
• Auto MDI/MDI-X: Supported
Ethernet Standards
• IEEE 802.3i – 10BASE-T
• IEEE 802.3u – 100BASE-TX
• IEEE 802.3ab – 1000BASE-T
• IEEE 802.3z – 1000BASE-X
• IEEE 802.3x – Flow Control
• IEEE 802.3af / IEEE 802.3at – PoE / PoE+
PoE Specifications
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• Maximum PoE Power: 30 W
• PoE Power Supply Type: Mid-span PSE
• Power Pin Assignment: 1/2 (+), 3/6 (-)
• PoE Power Budget: 30 W
Fiber Interface
• Data Rate: 1.25 Gbps
• Fiber Type: Single-mode or Multimode
• Typical Distance:
o 550 m (MMF, 850 nm)
o 10 km (SMF, 1310 nm)
• Connector Type: SC or LC depending on module
• Transmitter Power: -9 to -3 dBm
• Receiver Sensitivity: = -22 dBm
Performance
• Switching Capacity: 2 Gbps
• Maximum Frame Size: 9K Jumbo Frames
• Transmission Mode: Store-and-Forward
• Flow Control:
o Back-pressure (half duplex)
o IEEE 802.3x pause frame (full duplex)
Power
• Power Supply: External AC adapter
• Input Power: DC 52 V
• Power Consumption:
o af mode: ~20 W
o at mode: ~35 W
Environmental
• Operating Temperature: 0 °C to +50 °C
• Storage Temperature: -20 °C to +70 °C
• Humidity: 5 % – 90 % non-condensing
• MTBF: >100,000 hours
Mechanical
• Housing: Metal enclosure
• IP Rating: IP30
• Dimensions: 94 × 71 × 26 mm
• Installation: Desktop or wall mount
Typical Applications
• IP surveillance and security networks
• Wireless access point connectivity
• Smart buildings and IoT networks
• Enterprise and campus fiber access
• Long-distance PoE device deployment
