Dual Fiber 1-Channel CWDM OADM (East & West), LC/UPC, Plug-in LGX4 Module and 4-Slot 1U Rack
The 1-Channel CWDM Optical Add/Drop Multiplexer (OADM) is a passive wavelength management device designed by GLOBALfiber for CWDM networks operating from 1270 nm to 1610 nm.

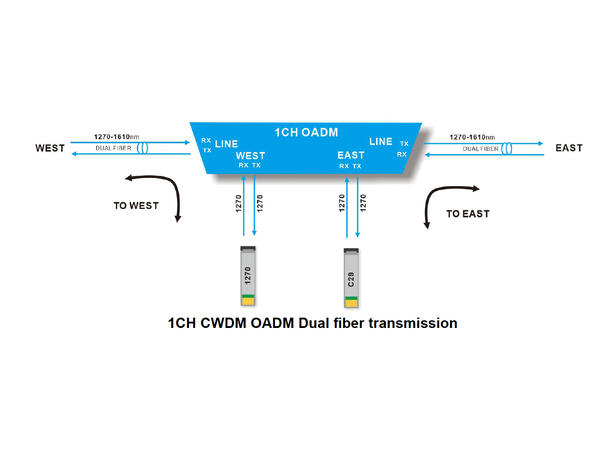

This dual-fiber OADM supports bidirectional traffic with one CWDM channel assigned to the West direction and one CWDM channel assigned to the East direction. The selected wavelength can be added and dropped independently on either side, enabling flexible point-to-point and ring network deployments.

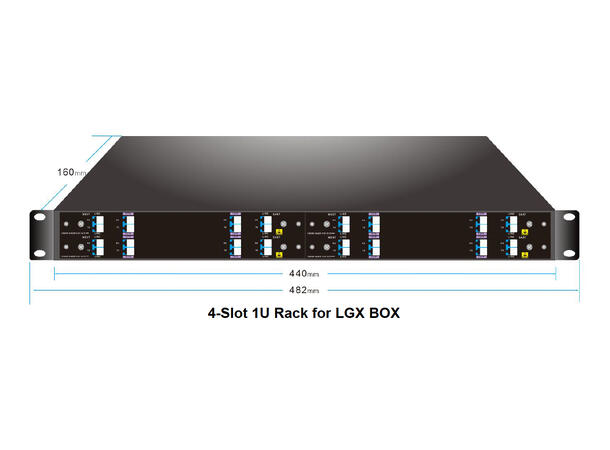

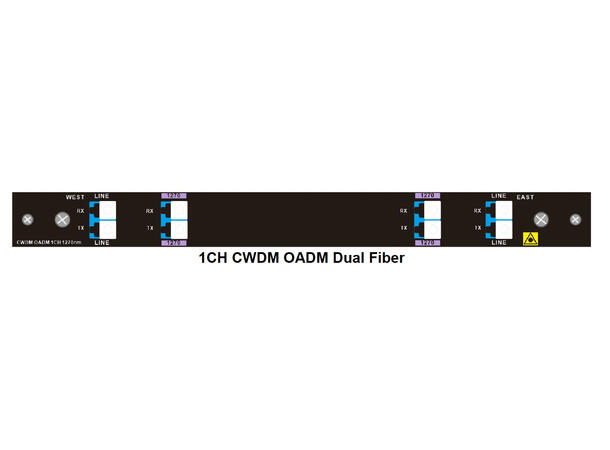

The module is available in a plug-in LGX4 form factor and can be installed in a 4-slot 1U rack chassis for high-density CWDM applications.
Key Features
• Passive CWDM Optical Add/Drop Multiplexer
• Supports wavelengths from 1270 nm to 1610 nm
• Dual-fiber design
• 1-channel add/drop capability in both East and West directions
• LC/UPC optical connectors
• LGX4 plug-in module format
• Compatible with 4-slot 1U rack chassis
• Low insertion loss and high channel isolation
• Protocol and data rate transparent
• Suitable for metro, access, enterprise, and data center optical networks
Product Specifications
Optical Characteristics
• CWDM Channels: 1 Channel
• Channel Spacing: 20 nm
• Channel Passband: ±6.5 nm
• Technology: Thin Film Filter (TFF)
• Center Wavelength Accuracy: ±0.05 nm
Insertion Loss
• Wavelength Port to West/East: = 1.0 dB
• West to East Express Port: = 1.2 dB
Optical Performance
• Return Loss: = 45 dB
• Directivity: = 45 dB
• Polarization Mode Dispersion (PMD): = 0.1 ps
• Polarization Dependent Loss (PDL): = 0.3 dB
Channel Isolation
• Adjacent Channel Isolation: = 30 dB
• Non-Adjacent Channel Isolation: = 45 dB
Environmental Specifications
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C
Mechanical Specifications
LGX Plug-in Module
• Dimensions (H × W × D): 214.5 × 150 × 20 mm
• Net Weight: 0.5 kg
4-Slot 1U Rack Chassis
• Dimensions (H × W × D): 44 × 440 × 160 mm
• Net Weight: 2.5 kg
Features
• Passive CWDM Optical Add/Drop Multiplexer
• Dual-fiber East/West configuration
• Low insertion loss
• High channel isolation
• Protocol and bit-rate transparent
• Maintenance-free operation
• Suitable for metro, access, enterprise, and data center networks
