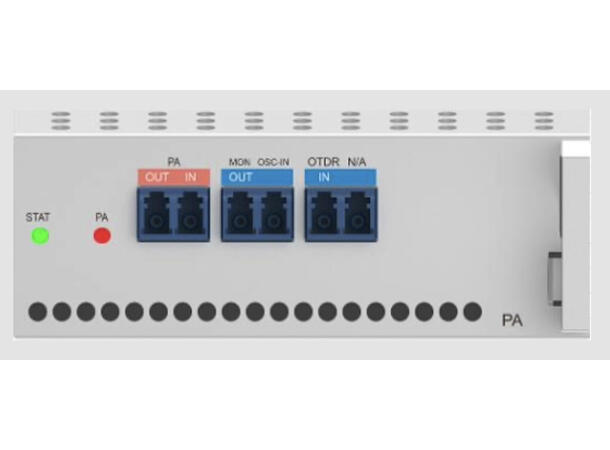

GF-6800-PA16/G20V – EDFA Optical Amplifier Module
The GF-6800-PA16/G20V is a high-performance C-band Erbium-Doped Fiber Amplifier (EDFA) designed to extend transmission distance and compensate for optical link loss in DWDM networks. With a nominal gain of 20 dB, the module is suitable for long-distance DCI, metro and backbone optical transmission applications.
The amplifier provides low-noise amplification and supports Automatic Gain Control (AGC), Automatic Power Control (APC) and Automatic Current Control (ACC). Integrated monitoring interfaces provide optical power supervision and support remote network management.
Technical Specifications
* Product type: EDFA Optical Amplifier Module
* Model: 6800-PA16/G20V
* Application: Pre-Amplifier / Line Amplifier
* Optical amplifier technology: Erbium-Doped Fiber Amplifier (EDFA)
* Operating wavelength range: 1528–1565 nm
* Optical band: C-band
* Nominal gain: 20 dB
* Supported amplifier gain range: 8–33 dB
* Maximum optical output power: up to +20 dBm
* Typical noise figure: 5.0 dB
* Typical gain flatness: 1.0 dB
* Input power threshold: down to -34 dBm, adjustable
* Polarization Dependent Loss (PDL): =0.3 dB
* Polarization Dependent Gain (PDG): =0.4 dB
* Polarization Mode Dispersion (PMD): =0.5 ps
* Pump leakage: =-29 dBm
* Return loss: =45 dB
* VOA gain adjustment: ±5 dB
* Operating modes:
* Automatic Gain Control (AGC)
* Automatic Power Control (APC)
* Automatic Current Control (ACC)
* Supports optical power monitoring via MON port
* Supports OSC interface for remote network management and monitoring
* Supports 1510 nm OSC interface
* Supports 1625 nm OTDR interface
* Designed for integration with the HT6800 DCI DWDM platform
* Hot-swappable modular design
* Module dimensions: 216 × 254 × 42 mm (W × D × H)
* Operating temperature: -10°C to +60°C
* Storage temperature: -40°C to +80°C
* Relative humidity: 5% to 95%, non-condensing
* Power consumption: =30 W
