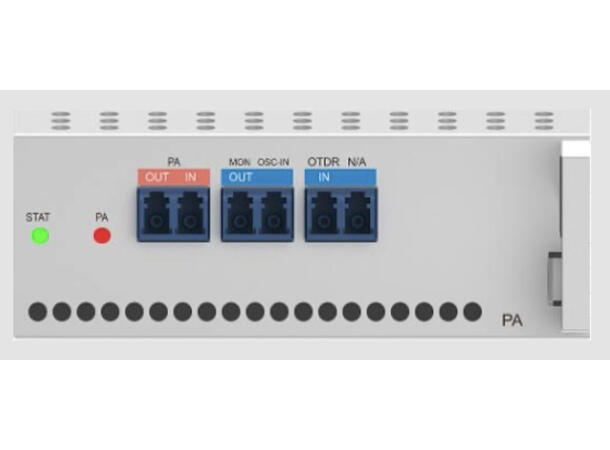

GF-6800-PA16/G15V – EDFA Optical Amplifier Module
The GF-6800-PA16/G15V is a high-performance C-band Erbium-Doped Fiber Amplifier (EDFA) designed for DWDM optical transmission systems. The module provides low-noise optical amplification with stable gain and output power, making it suitable for use as a pre-amplifier (PA), line amplifier (LA) or as part of an optical amplifier configuration in long-haul and DCI networks.
The amplifier supports multiple operating modes, including Automatic Gain Control (AGC), Automatic Power Control (APC) and Automatic Current Control (ACC). Integrated optical monitoring and management functions simplify deployment and operation in managed DWDM networks.
Technical Specifications
• Product type: EDFA Optical Amplifier Module
• Model: 6800-PA16/G15V
• Application: Pre-Amplifier / Line Amplifier
• Optical amplifier technology: Erbium-Doped Fiber Amplifier (EDFA)
• Operating wavelength range: 1528–1565 nm
• Optical band: C-band
• Nominal gain: 15 dB
• Supported amplifier gain range: 8–33 dB
• Maximum optical output power: up to +20 dBm
• Typical noise figure: 5.0 dB
• Typical gain flatness: 1.0 dB
• Input power threshold: down to -34 dBm, adjustable
• Polarization Dependent Loss (PDL): =0.3 dB
• Polarization Dependent Gain (PDG): =0.4 dB
• Polarization Mode Dispersion (PMD): =0.5 ps
• Pump leakage: =-29 dBm
• Return loss: =45 dB
• VOA gain adjustment: ±5 dB
• Operating modes:
o Automatic Gain Control (AGC)
o Automatic Power Control (APC)
o Automatic Current Control (ACC)
• Supports optical power monitoring via MON port
• Supports OSC interface for remote network management and monitoring
• Supports 1510 nm OSC interface
• Supports 1625 nm OTDR interface
• Designed for integration with the HT6800 DCI DWDM platform
• Hot-swappable modular design
• Module dimensions: 216 × 254 × 42 mm (W × D × H)
• Operating temperature: -10°C to +60°C
• Storage temperature: -40°C to +80°C
• Relative humidity: 5% to 95%, non-condensing
• Power consumption: =30 W
