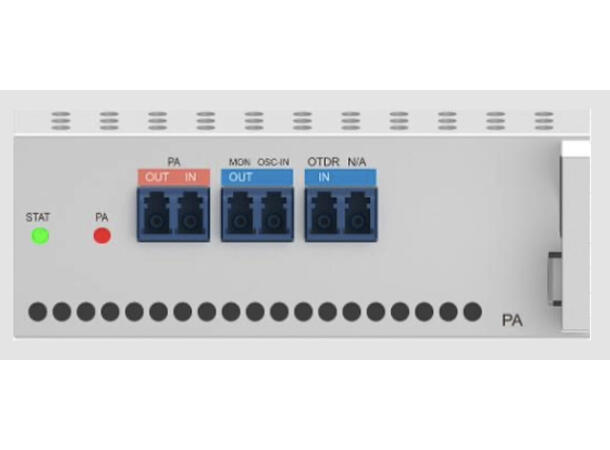

GF-6800-LA20/G20V

The GF-6800-LA20/G20V is a high-performance C-band Erbium-Doped Fiber Amplifier (EDFA) Line Amplifier designed for the GF-6800 DCI DWDM Optical Transmission System.

The module provides in-line optical amplification for DWDM transmission networks, compensating for fiber attenuation and passive optical losses between network nodes. It is designed for Data Center Interconnect (DCI), metro, backbone and long-haul DWDM applications where additional optical amplification is required to extend transmission distance. The amplifier provides low-noise operation, excellent gain flatness and flexible gain and output-power control through integrated AGC, APC and ACC operating modes.

• Product type: EDFA Line Amplifier Module

• Model: GF-6800-LA20/G20V

• Platform compatibility: GF-6800 DCI DWDM Optical Transmission System

• Amplifier type: Line Amplifier (LA)

• Amplifier technology: Erbium-Doped Fiber Amplifier (EDFA)

• Optical band: C-band

• Operating wavelength range: 1528–1565 nm

• Maximum optical output power: up to +20 dBm

• Supported gain range: 8–33 dB

• Typical noise figure: 5.0 dB

• Typical gain flatness: 1.0 dB

• Adjustable input threshold: down to -34 dBm

• Polarization Dependent Loss (PDL): =0.3 dB

• Polarization Dependent Gain (PDG): =0.4 dB

• Polarization Mode Dispersion (PMD): =0.5 ps

• Pump leakage: =-29 dBm

• Return loss: =45 dB

• VOA gain adjustment: ±5 dB

• Supports dual-amplifier configuration: 2 × LA

• Chassis occupancy: 2 slots

• C-band in-line EDFA amplification

• Designed for intermediate amplification points in DWDM links

• Compensates for optical fiber attenuation

• Compensates for passive MUX/DEMUX and other optical component losses

• Extends DWDM transmission distance

• Supports multi-channel DWDM signals

• Suitable for coherent optical transmission

• Supports 2 × independent LA amplification channels

• Low-noise optical amplification

• Excellent gain flatness

• Integrated Variable Optical Attenuator (VOA)

• Automatic Gain Control (AGC)

• Adjustable AGC gain

• Automatic Power Control (APC)

• Adjustable APC output power

• Automatic Current Control (ACC)

• Adjustable VOA

• VOA gain adjustment range: ±5 dB

• Integrated optical power monitoring

• MON port for optical power monitoring

• OSC interface for remote network management

• Supports 1510 nm OSC interface

• Supports 1625 nm OTDR interface

• Remote monitoring through the GF-6800 management platform

• Module dimensions: 216 × 254 × 42 mm (W × D × H)

• Operating temperature: -10°C to +60°C

• Storage temperature: -40°C to +80°C

• Relative humidity: 5% to 95%, non-condensing

• Maximum power consumption: =30 W

• Modular GF-6800 card design

• Data Center Interconnect (DCI)

• Metro DWDM networks

• Long-haul DWDM transmission

• Backbone optical networks

• Intermediate optical amplification sites

• High-loss fiber spans

• Point-to-point DWDM links

• 100G / 200G / 400G coherent transmission

• Multi-channel C-band DWDM systems
