GF-6800-LA20/G150V – C-Band EDFA Line Amplifier Module
The GF-6800-LA20/G150V is a high-performance C-band Erbium-Doped Fiber Amplifier (EDFA) Line Amplifier designed for the GF-6800 DCI DWDM Optical Transmission System.
The module is designed for in-line optical amplification in DWDM transmission networks, compensating for fiber attenuation and passive optical losses between network nodes. It is suitable for Data Center Interconnect (DCI), metro, backbone and long-haul coherent DWDM applications.
The amplifier provides low-noise optical amplification with adjustable gain and supports multiple operating modes, including Automatic Gain Control (AGC), Automatic Power Control (APC) and Automatic Current Control (ACC).
Technical Specifications
• Product type: EDFA Line Amplifier Module
• Model: GF-6800-LA20/G150V
• Platform: GF-6800 DCI DWDM Optical Transmission System
• Amplifier type: Line Amplifier (LA)
• Optical amplifier technology: Erbium-Doped Fiber Amplifier (EDFA)
• Operating optical band: C-band
• Operating wavelength range: 1528–1565 nm
• Maximum optical output power: up to +20 dBm
• Supported gain range: 8–33 dB
• Typical noise figure: 5.0 dB
• Typical gain flatness: 1.0 dB
• Adjustable input threshold: down to -34 dBm
• Polarization Dependent Loss (PDL): =0.3 dB
• Polarization Dependent Gain (PDG): =0.4 dB
• Polarization Mode Dispersion (PMD): =0.5 ps
• Pump leakage: =-29 dBm
• Return loss: =45 dB
• VOA gain adjustment: ±5 dB
• Chassis occupancy: 2 slots
The optical specifications above are given for the GF-6800 OA/OLA EDFA family.
Line Amplifier Functions
• In-line amplification of C-band DWDM signals
• Compensates for optical fiber attenuation
• Compensates for passive DWDM component losses
• Extends transmission distance between optical network nodes
• Suitable for placement at intermediate amplification sites
• Supports multi-channel DWDM transmission
• Designed for coherent optical transmission systems
• Supports dual-channel amplification architecture
• GF-6800 OA/OLA platform supports BA/PA or 2 × LA configurations
Operating & Control Modes
• Automatic Gain Control (AGC)
• Adjustable AGC gain
• Automatic Power Control (APC)
• Adjustable APC output power
• Automatic Current Control (ACC)
• Adjustable VOA
• VOA gain adjustment range: ±5 dB

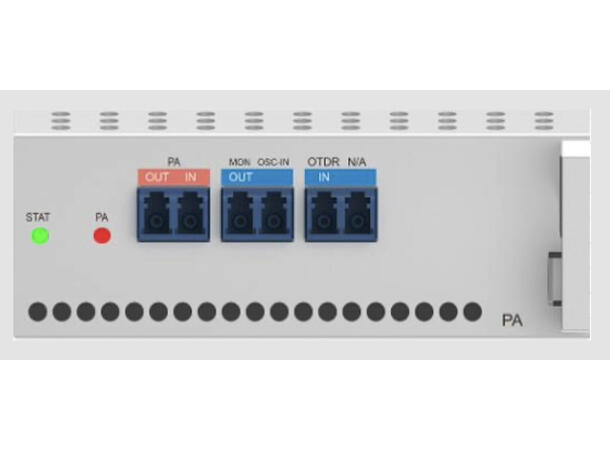

Monitoring & Management
• Integrated optical power monitoring
• MON port for optical power supervision
• OSC interface for remote network management
• 1510 nm OSC interface support
• 1625 nm OTDR interface support
• Remote monitoring through the HT6800 management platform
• Hot-swappable modular design
Mechanical & Environmental Specifications
• Module dimensions: 216 × 254 × 42 mm (W × D × H)
• Operating temperature: -10°C to +60°C
• Storage temperature: -40°C to +80°C
• Relative humidity: 5% to 95%, non-condensing
• Maximum power consumption: =30 W
• Compatible with GF-6800 chassis
Typical Applications
• Data Center Interconnect (DCI)
• Metro DWDM networks
• Long-haul DWDM transmission
• Backbone optical networks
• Intermediate EDFA amplification sites
• Point-to-point coherent DWDM links
• 100G / 200G / 400G coherent transmission
• High-loss optical fiber spans
• Multi-channel C-band DWDM systems
